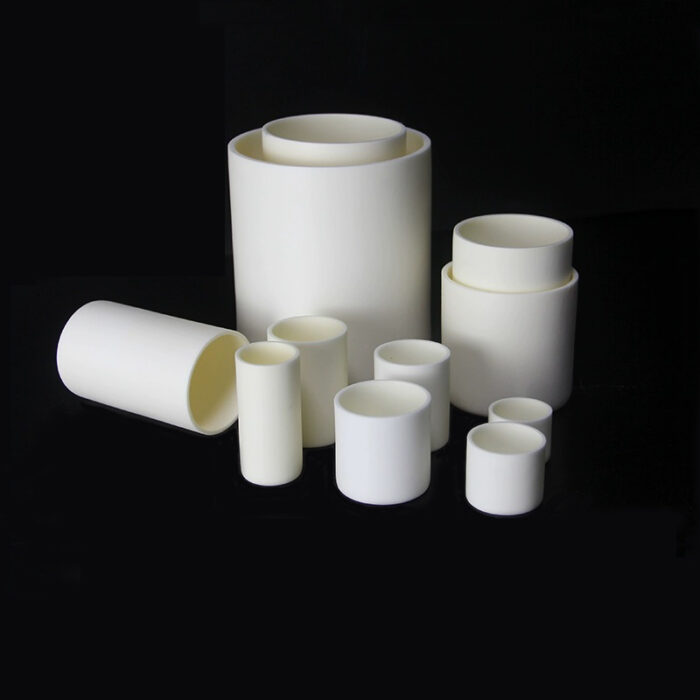

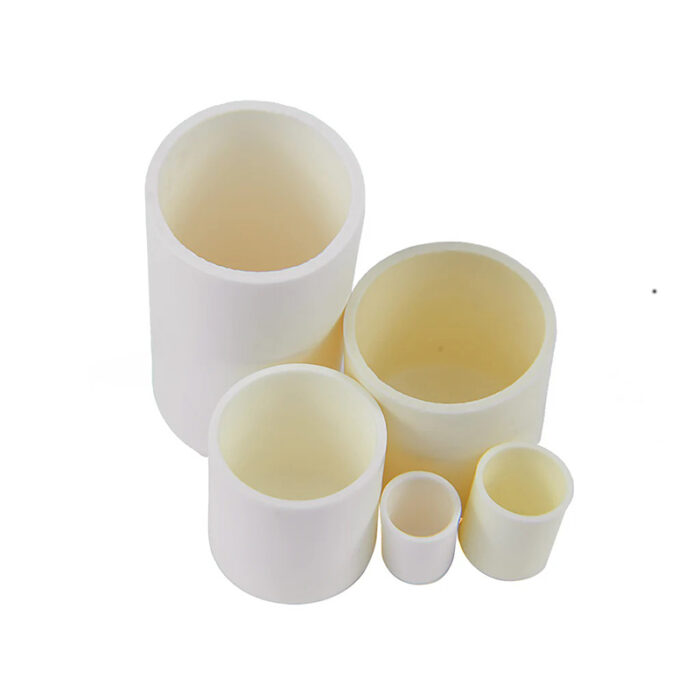

High Purity Alumina (Al2O3) Cylindrical Crucible (<100ml)

Description

SKU	Dimensions	Capacity	Purity	Maximum Temperature
ACM001	Φ12 x 12 mm	0.5 ml	>99%	1750 °C
ACM002	Φ20 x 4 mm	0.5 ml	>99%	1750 °C
ACM003	Φ11 x 20 mm	1 ml	>99%	1750 °C
ACM004	Φ13 x 25 mm	1.5 ml	>99%	1750 °C
ACM005	Φ12 x 39 mm	2 ml	>99%	1750 °C
ACM006	Φ30 x 5 mm	2 ml	>99%	1750 °C
ACM007	Φ16 x 28 mm	3 ml	>99%	1750 °C
ACM008	Φ20 x 20 mm	3 ml	>99%	1750 °C
ACM009	Φ14 x 44 mm	4 ml	>99%	1750 °C
ACM010	Φ16 x 50 mm	5 ml	>99%	1750 °C
ACM011	Φ25 x 25 mm	8 ml	>99%	1750 °C
ACM012	Φ28 x 17 mm	5 ml	>99%	1750 °C
ACM013	Φ16 x 56 mm	6 ml	>99%	1750 °C
ACM014	Φ19 x 35 mm	6 ml	>99%	1750 °C
ACM015	Φ19 x 58 mm	10 ml	>99%	1750 °C
ACM016	Φ20 x 50 mm	10 ml	>99%	1750 °C
ACM017	Φ30 x 28 mm	10 ml	>99%	1750 °C
ACM018	Φ23 x 60 mm	15 ml	>99%	1750 °C
ACM019	Φ47 x 13 mm	15 ml	>99%	1750 °C
ACM020	Φ35 x 30 mm	20 ml	>99%	1750 °C
ACM021	Φ28 x 58 mm	25 ml	>99%	1750 °C
ACM022	Φ40 x 35 mm	30 ml	>99%	1750 °C
ACM023	Φ50 x 30 mm	40 ml	>99%	1750 °C
ACM024	Φ35 x 58 mm	40 ml	>99%	1750 °C
ACM025	Φ35 x 70 mm	45 ml	>99%	1750 °C
ACM026	Φ30 x 100 mm	50 ml	>99%	1750 °C
ACM027	Φ42 x 52 mm	50 ml	>99%	1750 °C
ACM028	Φ40 x 70 mm	60 ml	>99%	1750 °C
ACM029	Φ50 x 50 mm	60 ml	>99%	1750 °C
ACM030	Φ35 x 100 mm	65 ml	>99%	1750 °C
ACM031	Φ45 x 65 mm	75 ml	>99%	1750 °C
ACM032	Φ60 x 40 mm	80 ml	>99%	1750 °C
ACM033	Φ75 x 27 mm	80 ml	>99%	1750 °C

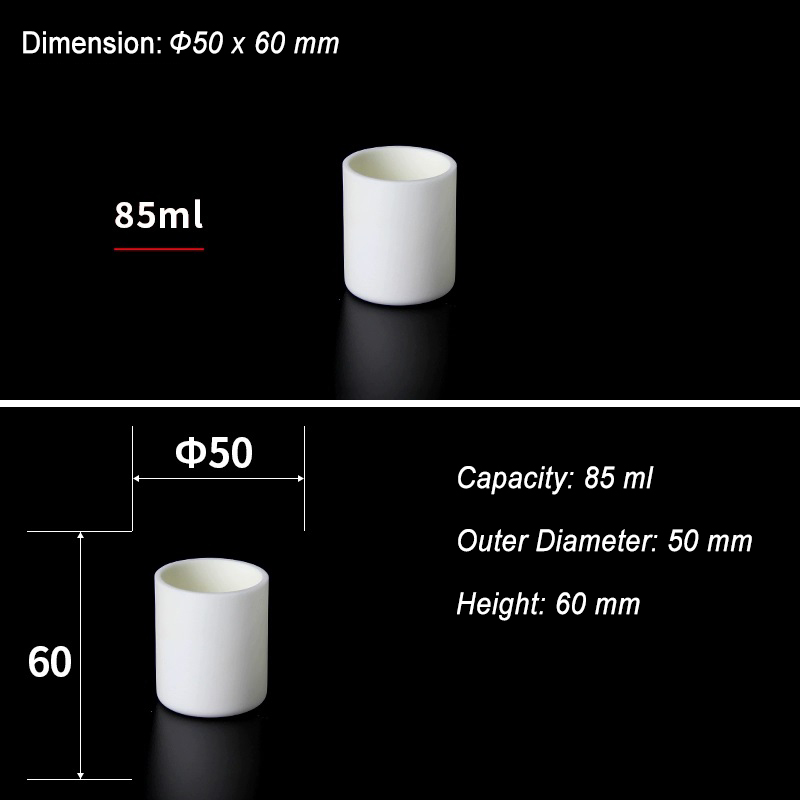

ACM034	Φ50 x 60 mm	85 ml	>99%	1750 °C

Crucible dimensions and purity can be customized upon request. Crucible covers are available upon request at an additional cost. The dimensions listed above are for reference only. Please contact us if you need tight tolerance.

Alumina crucibles, crafted from high-purity aluminum oxide (Al₂O₃), are known for their excellent thermal, mechanical, and chemical properties. These crucibles are used extensively in high-temperature applications and environments requiring resistance to corrosion and wear. They are ideal for a wide range of scientific, industrial, and laboratory applications due to their durability and stability at extreme temperatures.

Notes for use:

• Place the crucible in 105 °C oven for 2h to remove the moisture before the first use.
• Do not heat and cool faster than 5 °C/min <1200 °C or 4 °C/min >1200 °C.
• Do not use a gasoline torch, acetylene torch, or alcohol lamp to directly heat the crucible, as uneven heating may cause it to crack.
• The distance from the heating elements (such as carbon tubes, molybdenum disilicide rods, or heating wires) should be greater than 2 cm.

Properties and Performance:

• High Melting Point: Alumina crucibles can withstand temperatures up to 1750°C (3182°F), making them suitable for high-temperature processes.
• Thermal Stability: They offer excellent thermal shock resistance, allowing them to endure rapid temperature changes without cracking or warping.
• Mechanical Strength: Alumina has a high compressive strength, meaning it can maintain structural integrity under heavy loads and harsh conditions.
• Chemical Resistance: Alumina crucibles are highly resistant to corrosion and can withstand exposure to acids, alkalis, and other aggressive chemicals. They are non-reactive with most elements and compounds, making them ideal for applications that require chemical purity.
• Electrical Insulation: Alumina is an excellent electrical insulator, which is valuable in applications where conductivity needs to be minimized.
• Purity: Alumina crucibles are often available in high-purity grades (99% or higher), which is crucial for processes that require minimal contamination and high purity of materials.

Applications:

• Laboratory Use: Alumina crucibles are commonly used in chemical laboratories for melting and calcining materials, heat treatment, and gravimetric analysis.
• Metallurgy: Due to their high melting point, they are widely used in metal and alloy production, including smelting, refining, and casting processes.
• Ceramic and Glass Industry: Alumina crucibles are used for high-temperature firing, sintering, and material testing in the ceramic and glass industries.
• Chemical Processing: They serve as containers in high-temperature chemical reactions where resistance to aggressive chemicals and high temperatures is required.
• Thermal Analysis: Alumina crucibles are suitable for applications such as differential thermal analysis (DTA), thermogravimetric analysis (TGA), and other thermal testing methods.
• Electrical and Electronics: The insulating properties of alumina crucibles make them useful in electronic manufacturing and research for high-temperature insulation and containment of sensitive materials.

Types of Alumina Crucibles:

• High-purity Alumina Crucibles (99% and above): Ideal for ultra-high temperature applications where purity is essential.
• Low-purity Alumina Crucibles: Often more cost-effective and suitable for general-purpose high-temperature applications.
• Shapes and Sizes: Alumina crucibles come in various shapes (cylindrical, conical, square) and sizes, depending on specific needs and applications.

Advantages of Alumina Crucibles:

• Superior thermal shock and corrosion resistance
• Suitable for vacuum and inert environments
• High mechanical and thermal stability
• Available in customizable shapes and dimensions for specialized applications

In summary, alumina crucibles offer unmatched durability and performance for high-temperature processes, enabling reliable results across a range of scientific and industrial fields.

If you have specific requirements, such as dimensions, purity, or application details, please contact us to match your needs.
