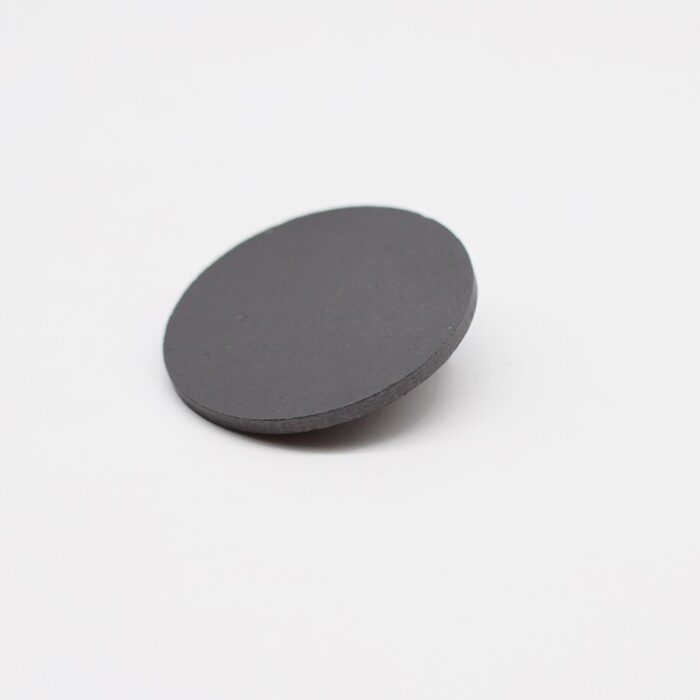

Bi2S3 (Bismuth Sulfide) Sputtering Targets
- High Conductivity: Bi₂S₃ films exhibit good electrical conductivity, making them ideal for use in electronic applications.
- Thermoelectric Efficiency: Known for its high thermoelectric performance, making it a key material in thermoelectric energy conversion devices.
- Optical Transparency: The material has desirable optical transparency in the visible spectrum, which is advantageous for optoelectronic applications.
- Chemical Stability: Bismuth Sulfide is stable under a wide range of chemical conditions, which ensures longevity and reliability in demanding environments.
- High Purity: Bi₂S₃ sputtering targets are available in high purity, ensuring the production of high-quality thin films with minimal contamination.
Custom products or bulk orders, please contact us for competitive pricing!
- Satisfaction Guaranteed
- No Hassle Refunds
- Secure Payments
Description
| Material | Bismuth Sulfide (Bi₂S₃) |
| Purity | 99.9% – 99.9999% / 3N 3N5 4N 4N5 5N 5N5 6N |
| Shape | disc, plate, sheet, rod, customized |
| Size | can be customized (contact us) |
| Package | vacuum bag or customer’s request |
| MOQ | 1pcs |
| Supply Ability | 10000pcs per month |
| Lead Time | Qty: 1-100, Time: 3-10 days
Qty: >100, Time: to be negotiated |
Bismuth Sulfide (Bi₂S₃) sputtering targets are a key material used in the deposition of thin films for various applications in electronics, optoelectronics, and energy devices. Bismuth Sulfide is a semiconducting material with unique optical and electrical properties, making it useful in the fabrication of thin films for thermoelectric devices, photovoltaics, and sensors. These sputtering targets are typically used in sputtering systems for high-quality thin film deposition, ensuring superior material consistency and film integrity.
Key Applications
- Photovoltaic Devices: Bismuth Sulfide films are used in solar cell technologies, particularly in the development of thin-film photovoltaic devices, due to their semiconducting properties.
- Thermoelectric Materials: Bi₂S₃ is widely researched for its thermoelectric properties, making it a candidate for energy harvesting applications such as thermoelectric generators and sensors.
- Optoelectronics: Used in optoelectronic devices such as photodetectors, light-emitting diodes (LEDs), and laser diodes, thanks to its unique optical characteristics.
- Sensors and Detectors: Bismuth Sulfide thin films are employed in gas sensors and chemical sensors due to their sensitivity to environmental factors and their conductivity changes in response to different gases.
- Catalysis: Bi₂S₃ is used in catalytic applications, such as in fuel cells or in chemical reaction processes, where its semiconductor properties are beneficial.
Features and Benefits
- High Conductivity: Bi₂S₃ films exhibit good electrical conductivity, making them ideal for use in electronic applications.
- Thermoelectric Efficiency: Known for its high thermoelectric performance, making it a key material in thermoelectric energy conversion devices.
- Optical Transparency: The material has desirable optical transparency in the visible spectrum, which is advantageous for optoelectronic applications.
- Chemical Stability: Bismuth Sulfide is stable under a wide range of chemical conditions, which ensures longevity and reliability in demanding environments.
- High Purity: Bi₂S₃ sputtering targets are available in high purity, ensuring the production of high-quality thin films with minimal contamination.
Specifications
- Composition: Bismuth Sulfide (Bi₂S₃)
- Purity: Available in various purity grades, typically ≥ 99.9%, with higher purity options for sensitive applications.
- Size: Custom sizes ranging from 50 mm to 200 mm in diameter, with thicknesses generally ranging from 1 mm to 10 mm.
- Density: Approximately 7.5 g/cm³.
- Form: Available as disc-shaped sputtering targets, with options for custom shapes and sizes.
- Sputtering Conditions: Ideal for RF and DC sputtering, depending on the deposition system and target material.
Customization Options
- Size & Shape: Custom sizes and shapes can be provided to match specific sputtering systems or deposition requirements.
- Purity & Composition: High-purity options and customized compositions can be requested for specialized applications.
- Surface Treatment: Polished and cleaned surfaces for optimized sputtering performance and uniform thin-film deposition.
For custom Bi₂S₃ sputtering targets or to inquire about availability, pricing, and lead times, contact our team. We offer tailored solutions for advanced thin-film applications in electronics, optoelectronics, and energy systems.
