Bi2S3 (Bismuth Sulfide) Pellets Granules Evaporation Materials
- Semiconducting Properties: Bi₂S₃ is a narrow-band-gap semiconductor, which makes it efficient for applications requiring light absorption, such as solar cells and photodetectors.
- High Absorptivity: The material has high light absorption in the visible and near-infrared ranges, making it ideal for optoelectronic applications.
- Good Thermal Stability: Bi₂S₃ thin films are thermally stable, making them suitable for high-temperature applications such as thermoelectric devices.
- Non-toxic Alternative: Bismuth-based materials, including Bi₂S₃, are considered less toxic compared to heavy metal-based semiconductors, offering a more environmentally friendly option for various applications.
Custom products or bulk orders, please contact us for competitive pricing!
- Satisfaction Guaranteed
- No Hassle Refunds
- Secure Payments
Description
| Material | Bi2S3 |
| Purity | 99.9% – 99.9999% / 3N 3N5 4N 4N5 5N 5N5 6N |

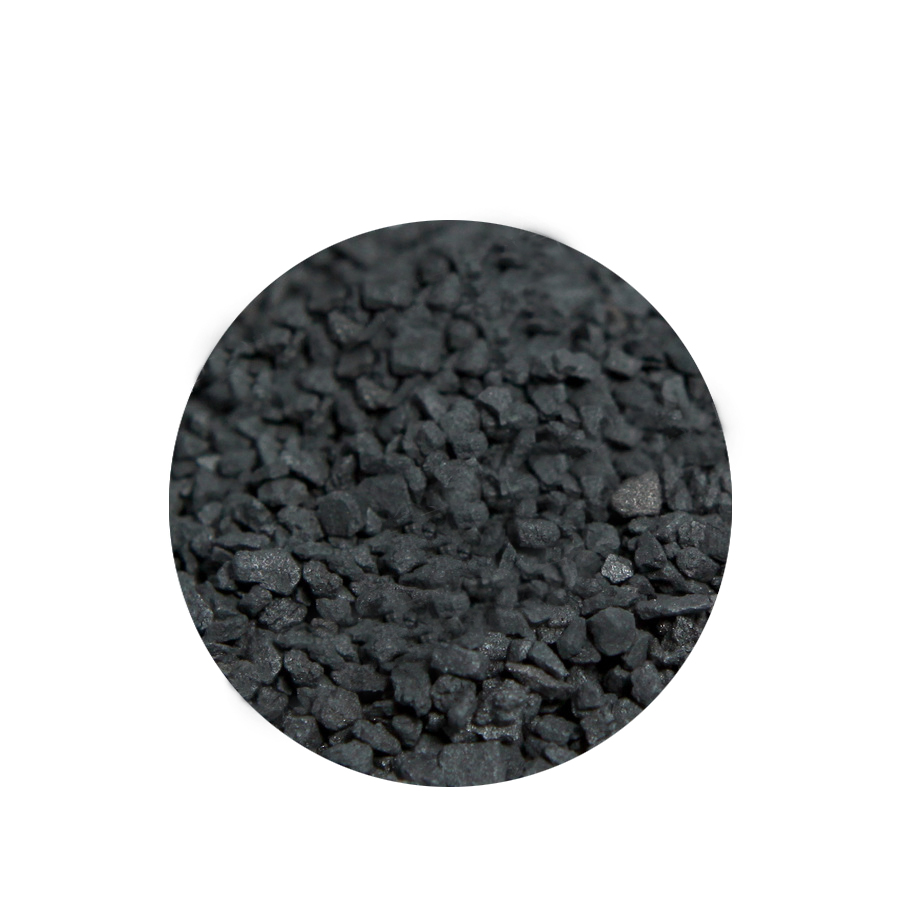

| Shape | Pellets / Granules / Particles / Pieces |
| Size | can be customized (contact us) |
| Package | vacuum bag or customer’s request |
| Place of Origin | China |
| Supply Ability | 1000kg per month |
| Lead Time | Qty: 1-100, Time: 3-10 days
Qty: >100, Time: to be negotiated |
Bi₂S₃ (Bismuth Sulfide) pellets are used as evaporation materials in physical vapor deposition (PVD) processes to produce thin films. Bismuth sulfide is a semiconductor material with a narrow band gap, making it suitable for applications in photovoltaics, thermoelectrics, and optoelectronic devices. It is particularly valued for its use in thin-film solar cells and photodetectors.
Key Applications:
- Photovoltaics: Bi₂S₃ is used in thin-film solar cells due to its favorable band gap for light absorption, which makes it efficient in converting sunlight into electricity.
- Thermoelectrics: Bismuth sulfide is employed in thermoelectric materials that convert temperature differences into electrical voltage, useful for energy harvesting applications.
- Optoelectronic Devices: Bi₂S₃ thin films are used in photodetectors and sensors due to their strong absorption in the visible and near-infrared regions.
- Biomedical Imaging: Bi₂S₃ nanoparticles are also explored for use in biomedical imaging and cancer therapy, though this is more relevant to its nanoparticle form rather than thin films.
Features:
- Semiconducting Properties: Bi₂S₃ is a narrow-band-gap semiconductor, which makes it efficient for applications requiring light absorption, such as solar cells and photodetectors.
- High Absorptivity: The material has high light absorption in the visible and near-infrared ranges, making it ideal for optoelectronic applications.
- Good Thermal Stability: Bi₂S₃ thin films are thermally stable, making them suitable for high-temperature applications such as thermoelectric devices.
- Non-toxic Alternative: Bismuth-based materials, including Bi₂S₃, are considered less toxic compared to heavy metal-based semiconductors, offering a more environmentally friendly option for various applications.
Specifications:
- Material: Bismuth Sulfide (Bi₂S₃)
- Purity: ≥ 99.9%
- Shape: Pellets (available in custom sizes)
- Size: Typically available in sizes from 1mm to 6mm diameter
- Melting Point: ~685°C
- Density: 6.78 g/cm³
- Band Gap: ~1.3 eV
- Deposition Methods: Suitable for thermal evaporation and electron-beam evaporation
- Applications: Thin-film solar cells, thermoelectrics, photodetectors, and optoelectronic devices
Tinsan Materials offers high-purity Bi₂S₃ (Bismuth Sulfide) Pellets for PVD processes such as thermal evaporation and electron-beam evaporation. Ideal for thin-film deposition in solar cells, thermoelectric materials, and optoelectronic devices. Available in various sizes and purities for precise thin-film applications.
If you have specific requirements, such as dimensions, purity, or application details, please contact us to match your needs.
