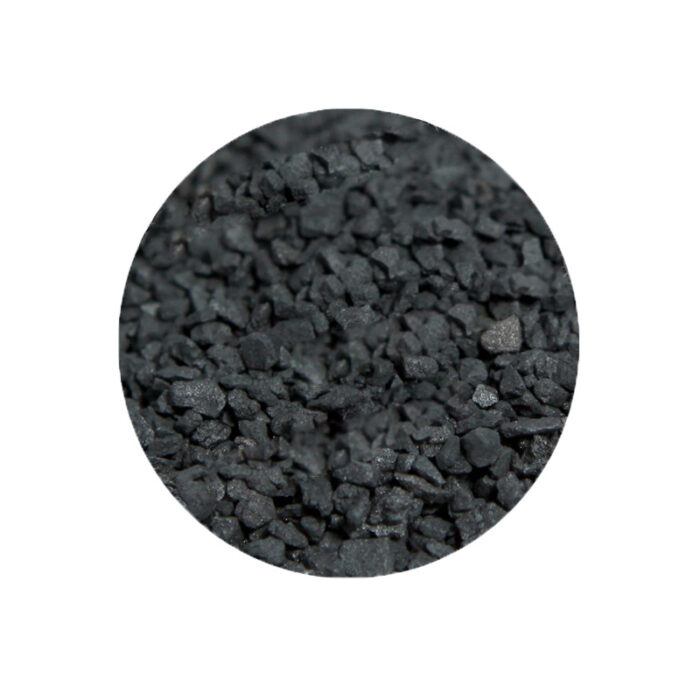

Cu2S (Copper(I) Sulfide) Pellets Granules Evaporation Materials

  • High Optical Absorption: Cu2S exhibits strong absorption in the visible and near-infrared regions, making it effective for light-harvesting devices like solar cells.
  • Good Semiconductor Properties: Copper(I) Sulfide has favorable electrical properties that make it a valuable material for semiconductors and related electronic devices.
  • Thermal Stability: The material maintains stability at high evaporation temperatures, ensuring high-quality thin films in evaporation processes.
  • High Purity: Available in high purity, ensuring minimal contamination and consistent thin film deposition for sensitive applications.

Custom products or bulk orders, please contact us for competitive pricing!

  • Done Satisfaction Guaranteed
  • Done No Hassle Refunds
  • Done Secure Payments
GUARANTEED SAFE CHECKOUT
  • Visa Card
  • MasterCard
  • American Express
  • Discover Card
  • PayPal

Description

Material Cu2S
Purity 99.9% – 99.9999% / 3N 3N5 4N 4N5 5N 5N5 6N
Shape Pellets / Granules / Particles / Pieces
Size can be customized (contact us)
Package vacuum bag or customer’s request
Place of Origin China
Supply Ability 1000kg per month
Lead Time Qty: 1-100, Time: 3-10 days

Qty: >100, Time: to be negotiated



Copper(I) Sulfide (Cu2S) is a semiconductor material commonly used in thin-film deposition processes, particularly in thermal and electron-beam (e-beam) evaporation. Its strong absorption in the visible and near-infrared regions makes it useful in optoelectronics, photovoltaics, and other electronic applications. Cu2S is employed in creating films for a variety of high-tech industries, such as solar cells, infrared detectors, and photodetectors.

Key Applications:

  • Photovoltaic Devices: Cu2S is used in the production of thin-film solar cells due to its semiconductor properties and absorption of solar radiation, contributing to energy generation.
  • Optoelectronics: Its ability to interact with light in the visible and infrared spectrum makes it useful in devices like photodetectors and IR sensors.
  • Semiconductor Devices: Cu2S is applied in the fabrication of transistors and diodes, taking advantage of its semiconductor properties for switching and amplification.
  • Infrared Detectors: The material’s optical characteristics make it ideal for creating IR detectors and other related sensing technologies.
  • Thin-Film Coatings: It is widely used in deposition processes to form thin films for various electronic and optoelectronic applications.

Features:

  • High Optical Absorption: Cu2S exhibits strong absorption in the visible and near-infrared regions, making it effective for light-harvesting devices like solar cells.
  • Good Semiconductor Properties: Copper(I) Sulfide has favorable electrical properties that make it a valuable material for semiconductors and related electronic devices.
  • Thermal Stability: The material maintains stability at high evaporation temperatures, ensuring high-quality thin films in evaporation processes.
  • High Purity: Available in high purity, ensuring minimal contamination and consistent thin film deposition for sensitive applications.

Specifications:

  • Material: Copper(I) Sulfide (Cu2S)
  • Purity: ≥ 99.9%
  • Shape: Pellets
  • Size: Typically 1-6 mm in diameter (custom sizes available)
  • Melting Point: ~1130°C
  • Density: 5.6 g/cm³
  • Deposition Methods: Suitable for thermal evaporation, e-beam evaporation, and sputtering
  • Applications: Solar cells, optoelectronics, infrared detectors, semiconductors, thin-film coatings

Tinsan Materials offers high-purity Cu2S (Copper(I) Sulfide) pellets for evaporation processes. Ideal for thin-film solar cells, optoelectronics, IR detectors, and semiconductor applications. Suitable for thermal and e-beam evaporation.

If you have specific requirements, such as dimensions, purity, or application details, please contact us to match your needs.
