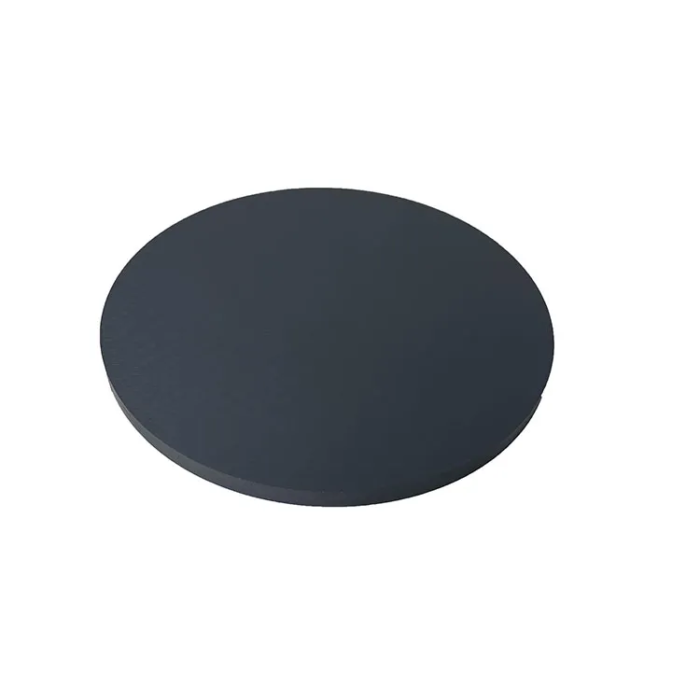

CuO (Copper Oxide) Sputtering Target
- Narrow Bandgap: CuO is a p-type semiconductor with a narrow bandgap (~1.2-1.7 eV), making it suitable for absorbing visible light, ideal for solar energy and semiconductor applications.
- High Absorption: CuO exhibits excellent light absorption in the visible range, enhancing its efficiency in photovoltaic cells and other optical applications.
- Chemical Stability: CuO thin films are highly stable, offering long-lasting performance in various environmental conditions.
- Customizable: CuO sputtering targets can be tailored in size, shape, and purity to fit specific deposition systems and applications.
Custom products or bulk orders, please contact us for competitive pricing!
- Satisfaction Guaranteed
- No Hassle Refunds
- Secure Payments
Description
| Material | CuO |
| Purity | 99.9% – 99.9999% / 3N 3N5 4N 4N5 5N 5N5 6N |
| Shape | disc, plate, sheet, rod, customized |
| Size | can be customized (contact us) |
| Package | vacuum bag or customer’s request |
| Place of Origin | China |
| MOQ | 1pcs |
| Supply Ability | 10000pcs per month |
| Lead Time | Qty: 1-100, Time: 3-10 days
Qty: >100, Time: to be negotiated |
Copper Oxide (CuO) sputtering targets are widely utilized in thin-film deposition for applications across electronics, optics, sensors, and energy storage devices. CuO, a p-type semiconductor with a narrow bandgap, is ideal for producing films in a variety of fields, including photovoltaics, catalysis, and transparent conducting oxides (TCO).
Key Applications:
- Photovoltaics: CuO thin films are used in solar cells as an absorber layer, taking advantage of its p-type semiconductor characteristics and excellent optical absorption properties in the visible spectrum.
- Semiconductors: CuO is a valuable material for semiconductor devices due to its narrow bandgap and the ability to form stable thin films for transistors and diodes.
- Gas Sensors: CuO thin films are highly sensitive to gases such as hydrogen (Hâ‚‚) and carbon monoxide (CO), making them suitable for use in gas-sensing applications.
- Electrochemical Devices: CuO is widely applied in lithium-ion batteries and supercapacitors, contributing to the development of next-generation energy storage devices.
- Catalysts: Due to its catalytic properties, CuO thin films are used in heterogeneous catalysis applications for environmental and industrial processes.
- Optical Coatings: CuO films can be used in anti-reflective coatings and other optical applications where transparency and conductivity are crucial.
Features of CuO Sputtering Targets:
- Narrow Bandgap: CuO is a p-type semiconductor with a narrow bandgap (~1.2-1.7 eV), making it suitable for absorbing visible light, ideal for solar energy and semiconductor applications.
- High Absorption: CuO exhibits excellent light absorption in the visible range, enhancing its efficiency in photovoltaic cells and other optical applications.
- Chemical Stability: CuO thin films are highly stable, offering long-lasting performance in various environmental conditions.
- Customizable: CuO sputtering targets can be tailored in size, shape, and purity to fit specific deposition systems and applications.
Customization Options:
- Target Sizes: Available in different forms, such as round, rectangular, or custom dimensions, to fit various sputtering systems.
- Purity Levels: CuO sputtering targets can be produced with high purity levels, up to 99.99%, to ensure the highest quality films for critical applications.
- Bonding Options: Targets can be bonded to backing plates for enhanced heat dissipation during sputtering, minimizing the risk of cracking or thermal damage.
CuO (Copper Oxide) sputtering targets from Tinsan Materials offer high-performance thin films for photovoltaics, semiconductors, gas sensors, and energy storage devices. With excellent p-type semiconductor properties, strong light absorption, and customizable sizes and purity levels, CuO targets are ideal for solar cells, catalysis, and next-generation energy applications.
If you have specific requirements, such as dimensions, purity, or application details, please contact us to match your needs.
