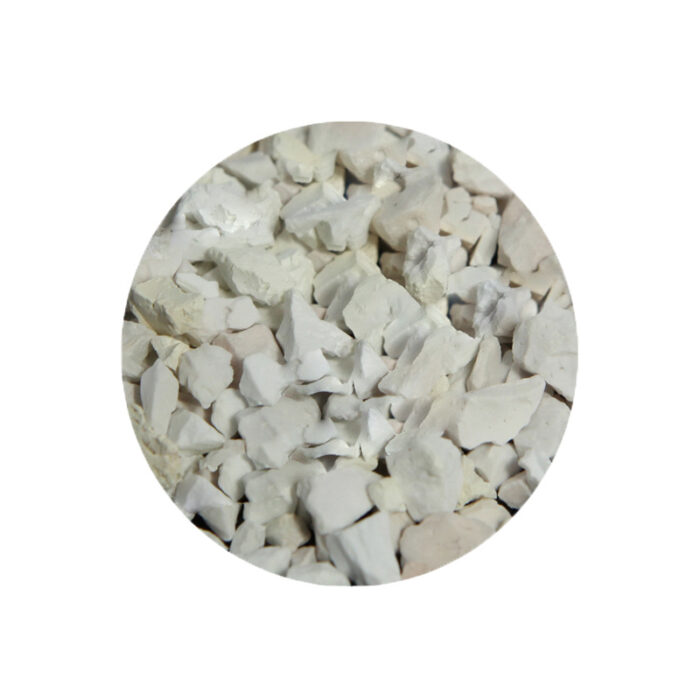

Ga2O3 (Gallium Oxide) Pellets Granules Evaporation Materials
- Wide Bandgap (4.8 eV): Ga₂O₃ is a wide-bandgap semiconductor, offering superior electrical performance in power electronics and UV detection.
- High Optical Transparency: Ga₂O₃ is transparent in the UV-visible range, making it an ideal material for optical applications.
- High Thermal and Chemical Stability: The material exhibits stability under extreme thermal conditions, enhancing its performance in harsh environments.
- Excellent Thin Film Quality: Ga₂O₃ forms smooth, uniform thin films, ensuring high precision in electronic and optical devices.
- Low Cost and Availability: Compared to other wide-bandgap semiconductors like SiC or GaN, Ga₂O₃ offers a cost-effective alternative for high-performance electronics.
Custom products or bulk orders, please contact us for competitive pricing!
- Satisfaction Guaranteed
- No Hassle Refunds
- Secure Payments
Description
| Material | Ga2O3 |
| Purity | 99.9% – 99.9999% / 3N 3N5 4N 4N5 5N 5N5 6N |
| Shape | Pellets / Granules / Particles / Pieces |
| Size | can be customized (contact us) |
| Package | vacuum bag or customer’s request |
| Place of Origin | China |
| Supply Ability | 1000kg per month |
| Lead Time | Qty: 1-100, Time: 3-10 days
Qty: >100, Time: to be negotiated |
Ga₂O₃ (Gallium Oxide) pellets are high-purity materials used for thin-film deposition via evaporation techniques such as physical vapor deposition (PVD). Gallium oxide is known for its wide bandgap, excellent transparency in the ultraviolet (UV) spectrum, and superior thermal and chemical stability. These properties make Ga₂O₃ ideal for various advanced electronic and optical applications.
Key Applications:
- Optoelectronic Devices: Ga₂O₃ is used in the deposition of thin films for optoelectronic devices, including UV photodetectors and power electronics.
- Semiconductor Industry: The material is crucial for fabricating next-generation power semiconductors due to its wide bandgap and high breakdown voltage.
- High-Power Electronics: Ga₂O₃-based thin films are utilized in high-voltage, high-power applications, such as transistors and diodes, due to their ability to handle high electric fields.
- Transparent Conductive Films: Gallium oxide can be used in transparent conducting films, which are crucial for displays, solar cells, and other optoelectronic devices.
- Gas Sensors: Ga₂O₃ films are employed in gas sensors for detecting oxygen and other gases due to their high sensitivity and selectivity.
Features:
- Wide Bandgap (4.8 eV): Ga₂O₃ is a wide-bandgap semiconductor, offering superior electrical performance in power electronics and UV detection.
- High Optical Transparency: Ga₂O₃ is transparent in the UV-visible range, making it an ideal material for optical applications.
- High Thermal and Chemical Stability: The material exhibits stability under extreme thermal conditions, enhancing its performance in harsh environments.
- Excellent Thin Film Quality: Ga₂O₃ forms smooth, uniform thin films, ensuring high precision in electronic and optical devices.
- Low Cost and Availability: Compared to other wide-bandgap semiconductors like SiC or GaN, Ga₂O₃ offers a cost-effective alternative for high-performance electronics.
Specifications:
- Material: Gallium Oxide (Ga₂O₃)
- Purity: ≥ 99.9%
- Shape: Pellets
- Size: Typically 1-6 mm in diameter, with custom sizes available upon request
- Melting Point: 1725°C
- Density: 5.88 g/cm³
- Deposition Methods: Suitable for thermal evaporation and electron-beam evaporation
- Optical Range: Ultraviolet to visible (UV-VIS)
- Applications: UV photodetectors, power semiconductors, transparent conductive films, gas sensors
Tinsan Materials offers high-purity Ga₂O₃ (Gallium Oxide) pellets for UV photodetectors, power semiconductors, and transparent conductive films. Available for thermal and electron-beam evaporation processes.
If you have specific requirements, such as dimensions, purity, or application details, please contact us to match your needs.
