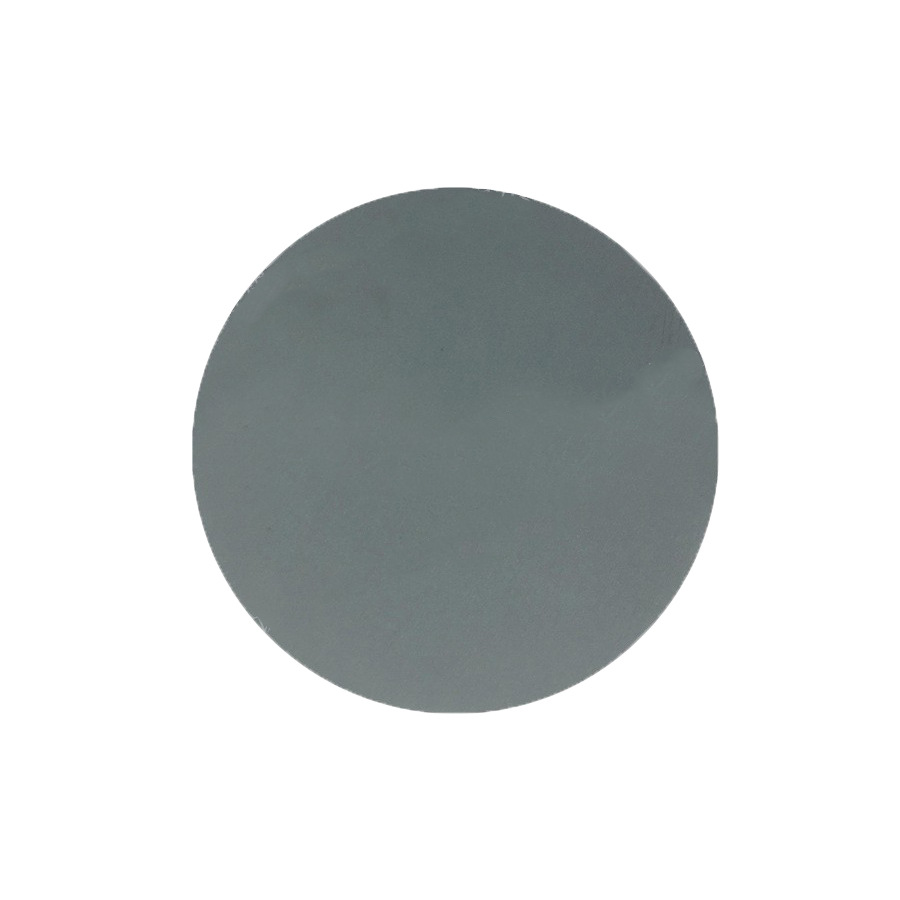

GaS (Gallium Sulfide) Sputtering Target

  • Wide Bandgap: GaS possesses a wide bandgap of about 2.5 eV, making it suitable for UV and visible light applications.
  • High Purity: GaS targets are available in high-purity forms to ensure the quality and performance of the deposited films.
  • Layered Structure: The layered nature of GaS allows for easy mechanical exfoliation, enabling the production of high-quality monolayers and thin films.
  • Thermal Stability: GaS exhibits good thermal stability, maintaining its properties during high-temperature processing.
  • Good Electrical Conductivity: GaS is a good electrical conductor, making it valuable in electronic applications.

Custom products or bulk orders, please contact us for competitive pricing!

  • Done Satisfaction Guaranteed
  • Done No Hassle Refunds
  • Done Secure Payments
GUARANTEED SAFE CHECKOUT
  • Visa Card
  • MasterCard
  • American Express
  • Discover Card
  • PayPal

Description

Material GaS
Purity 99.9% – 99.9999% / 3N 3N5 4N 4N5 5N 5N5 6N
Shape disc, plate, sheet, rod, customized
Size can be customized (contact us)
Package vacuum bag or customer’s request
Place of Origin China
MOQ 1pcs
Supply Ability 10000pcs per month
Lead Time Qty: 1-100, Time: 3-10 days

Qty: >100, Time: to be negotiated



Gallium Sulfide (GaS) sputtering targets are used to create thin films for various applications, including optoelectronics, photonics, and semiconductor devices. GaS is a layered semiconductor material that exhibits excellent optical and electrical properties, making it ideal for advanced electronic and photonic devices.

Key Applications:

  • Optoelectronics: GaS thin films are utilized in optoelectronic devices such as photodetectors, light-emitting diodes (LEDs), and laser diodes due to their direct bandgap properties.
  • Semiconductor Devices: GaS can be used in the fabrication of transistors and other semiconductor components, contributing to the development of next-generation electronics.
  • Solar Cells: GaS thin films are explored for use in thin-film solar cells, where they can enhance light absorption and conversion efficiency.
  • Sensors: GaS films are applied in gas sensors and other types of sensors, benefiting from their sensitivity to various chemical species.

Features of GaS Sputtering Targets:

  • Wide Bandgap: GaS possesses a wide bandgap of about 2.5 eV, making it suitable for UV and visible light applications.
  • High Purity: GaS targets are available in high-purity forms to ensure the quality and performance of the deposited films.
  • Layered Structure: The layered nature of GaS allows for easy mechanical exfoliation, enabling the production of high-quality monolayers and thin films.
  • Thermal Stability: GaS exhibits good thermal stability, maintaining its properties during high-temperature processing.
  • Good Electrical Conductivity: GaS is a good electrical conductor, making it valuable in electronic applications.

Customization Options:

  • Target Sizes: Available in various dimensions and shapes to fit specific sputtering systems.
  • Purity Levels: Options for high-purity GaS targets tailored for demanding applications.
  • Bonding Services: GaS targets can be bonded to backing plates for enhanced thermal performance during the sputtering process.

Tinsan Materials provides high-quality GaS (Gallium Sulfide) sputtering targets for thin film deposition in optoelectronics, semiconductor devices, and sensors. GaS films exhibit a wide bandgap, high purity, and excellent thermal stability for advanced applications.

If you have specific requirements, such as dimensions, purity, or application details, please contact us to match your needs.
