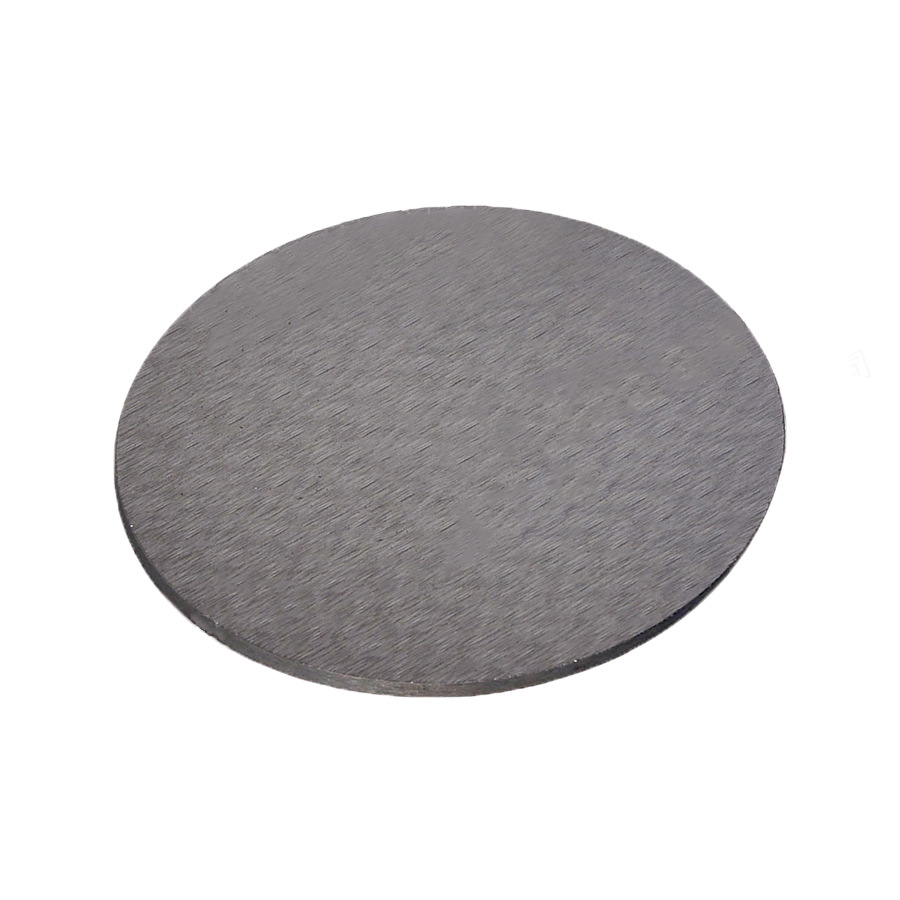

GeSe2 (Germanium Selenium) Sputtering Targets

  • Infrared Transparency: GeSe₂ offers excellent transmission in the infrared spectrum, making it suitable for IR optics and photonic applications.
  • Phase-Change Properties: GeSe₂ is a key material in phase-change memory technology, providing the ability to switch between different states under thermal or electrical stimuli.
  • Chemical and Thermal Stability: GeSe₂ thin films exhibit strong chemical resistance and can withstand high temperatures, ensuring longevity and performance in harsh conditions.
  • High Refractive Index: GeSe₂ has a high refractive index, making it suitable for optical applications requiring materials with specific light-bending capabilities.

Custom products or bulk orders, please contact us for competitive pricing!

  • Done Satisfaction Guaranteed
  • Done No Hassle Refunds
  • Done Secure Payments
GUARANTEED SAFE CHECKOUT
  • Visa Card
  • MasterCard
  • American Express
  • Discover Card
  • PayPal

Description

Material Germanium Selenium
Purity 99.9% – 99.9999% / 3N 3N5 4N 4N5 5N 5N5 6N
Shape disc, plate, sheet, rod, customized
Size can be customized (contact us)
Package vacuum bag or customer’s request
Place of Origin China
MOQ 1pcs
Supply Ability 10000pcs per month
Lead Time Qty: 1-100, Time: 3-10 days

Qty: >100, Time: to be negotiated



Germanium Diselenide (GeSe₂) sputtering targets are used in thin-film deposition processes, particularly in optical and semiconductor applications. GeSe₂ is known for its unique optical and electrical properties, making it a key material in advanced photonic and electronic devices.

Key Applications:

  • Optoelectronics: GeSe₂ is used in optoelectronic devices such as photodetectors, solar cells, and infrared sensors due to its favorable electronic and optical properties.
  • Chalcogenide Glasses: GeSe₂ is a crucial component in the production of chalcogenide glass thin films, which are used in infrared optics, photonic devices, and memory storage technology (such as phase-change memory).
  • Semiconductors: In semiconductor applications, GeSe₂ thin films offer potential for usage in non-volatile memory devices, providing a stable platform for memory retention.
  • Infrared Optics: Due to its wide transmission in the infrared region, GeSe₂ is used in the production of IR lenses and windows, especially in environments requiring materials with high chemical resistance and thermal stability.
  • Thin Film Transistors (TFTs): GeSe₂ is explored as a potential material for thin-film transistors due to its semiconductor properties and compatibility with flexible electronics.

Features of GeSe₂ Sputtering Targets:

  • Infrared Transparency: GeSe₂ offers excellent transmission in the infrared spectrum, making it suitable for IR optics and photonic applications.
  • Phase-Change Properties: GeSe₂ is a key material in phase-change memory technology, providing the ability to switch between different states under thermal or electrical stimuli.
  • Chemical and Thermal Stability: GeSe₂ thin films exhibit strong chemical resistance and can withstand high temperatures, ensuring longevity and performance in harsh conditions.
  • High Refractive Index: GeSe₂ has a high refractive index, making it suitable for optical applications requiring materials with specific light-bending capabilities.

Customization Options:

  • Dimensions: GeSe₂ sputtering targets are available in a variety of shapes and sizes (discs, plates, and custom geometries) to meet the needs of different thin-film deposition systems.
  • Purity Levels: High-purity GeSe₂ sputtering targets (up to 99.999%) are available for precision optical and electronic applications.
  • Composition Control: Customization of Ge and Se ratios can be offered to adjust the material’s properties to match specific application requirements.

GeSe₂ sputtering targets from Tinsan Materials offer excellent infrared transparency, phase-change properties, and chemical stability for optoelectronics, IR optics, and semiconductor applications. Custom sizes and high-purity targets available for advanced thin-film deposition.

If you have specific requirements, such as dimensions, purity, or application details, please contact us to match your needs.
