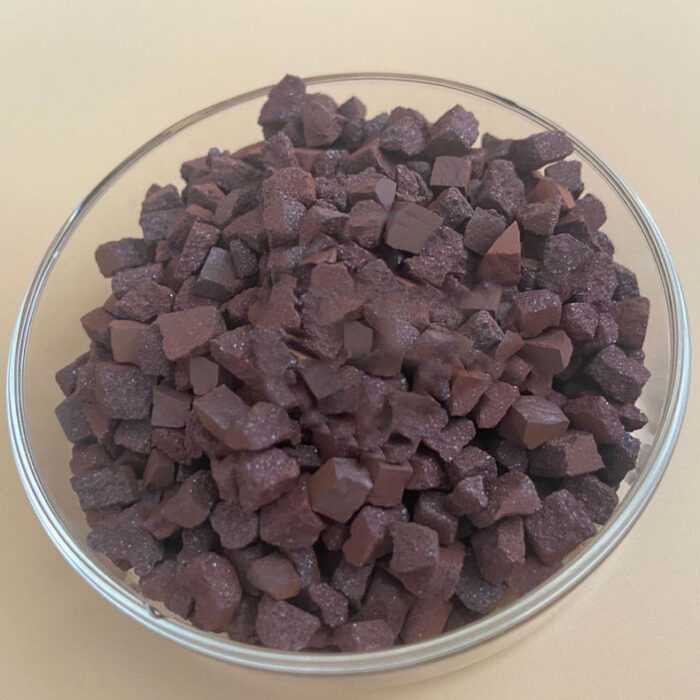

In2S3 (Indium Sulfide) Pellets Granules Evaporation Materials

  • High purity (≥99.9%).
  • Exceptional semiconducting and optical properties.
  • Low toxicity and environmentally friendly.
  • Uniform pellet size for consistent deposition.
  • Customizable sizes and shapes.

Custom products or bulk orders, please contact us for competitive pricing!

  • Done Satisfaction Guaranteed
  • Done No Hassle Refunds
  • Done Secure Payments
GUARANTEED SAFE CHECKOUT
  • Visa Card
  • MasterCard
  • American Express
  • Discover Card
  • PayPal

Description

Material Indium Sulfide (In₂S₃)
Purity 99.9% – 99.9999% / 3N 3N5 4N 4N5 5N 5N5 6N
Shape Pellets / Granules / Particles / Pieces
Size can be customized (contact us)
Package vacuum bag or customer’s request
Supply Ability 1000kg per month
Lead Time Qty: 1-100, Time: 3-10 days

Qty: >100, Time: to be negotiated



Indium Sulfide (In₂S₃) Pellets are high-purity materials ideal for advanced optical, electronic, and photovoltaic applications. Known for their excellent semiconducting properties, low toxicity, and high optical absorption in the visible and near-infrared regions, In₂S₃ Pellets are widely used in thin-film deposition processes, particularly in solar cells, photodetectors, and optoelectronic devices. Their customizable specifications make them suitable for both research and industrial production.

Key Features

  • High purity (≥99.9%).
  • Exceptional semiconducting and optical properties.
  • Low toxicity and environmentally friendly.
  • Uniform pellet size for consistent deposition.
  • Customizable sizes and shapes.

Technical Specifications

① Chemical Composition

  • Indium Sulfide (In₂S₃) Content: ≥99.9%.
  • Trace Impurities: Available upon request.

② Physical Properties

  • Appearance: Yellow or orange pellets.
  • Density: ~4.5 g/cm³.
  • Melting Point: ~1,050°C.

③ Pellet Size

  • Standard Sizes: 1-3 mm, 3-5 mm.
  • Custom sizes available upon request.

Applications

  • Thin-Film Deposition: Widely used in PVD (Physical Vapor Deposition) processes to produce thin films for photovoltaic cells and optoelectronic devices.
  • Solar Cell Manufacturing: Serves as a non-toxic alternative to cadmium-based compounds in thin-film solar cells, particularly as a buffer layer in CIGS (Copper Indium Gallium Selenide) technology.
  • Optoelectronics: Used in photodetectors, LEDs, and other optoelectronic devices due to its excellent optical absorption and stability.
  • Research and Development: A valuable material for academic and industrial research focused on developing next-generation photovoltaic and electronic devices.
  • Catalysis: Applied as a catalyst in various chemical reactions, benefiting from its unique electronic structure.

Product Advantages

  • High Purity: Ensures superior performance in sensitive thin-film and electronic applications.
  • Environmentally Friendly: Low toxicity compared to traditional materials like cadmium.
  • Excellent Optical Properties: Ideal for applications requiring high visible and IR absorption.
  • Custom Solutions: Sizes and packaging tailored to meet specific needs.
  • Reliable Quality: Ensures consistency in industrial and research applications.

Packaging and Storage

① Packaging

  • Vacuum-sealed, moisture-proof containers.
  • Custom packaging available upon request.

② Storage

  • Store in a cool, dry environment, away from moisture and contaminants.
  • Maintain airtight sealing to preserve material purity and stability.

Quality Certifications

  • ISO 9001 Certified Quality Management System.
  • RoHS Compliance.
  • Certificate of Analysis (COA) and Material Safety Data Sheet (MSDS) available upon request.

For more information or to request a quote, please contact us. Our team is ready to assist with tailored solutions for your project needs.
