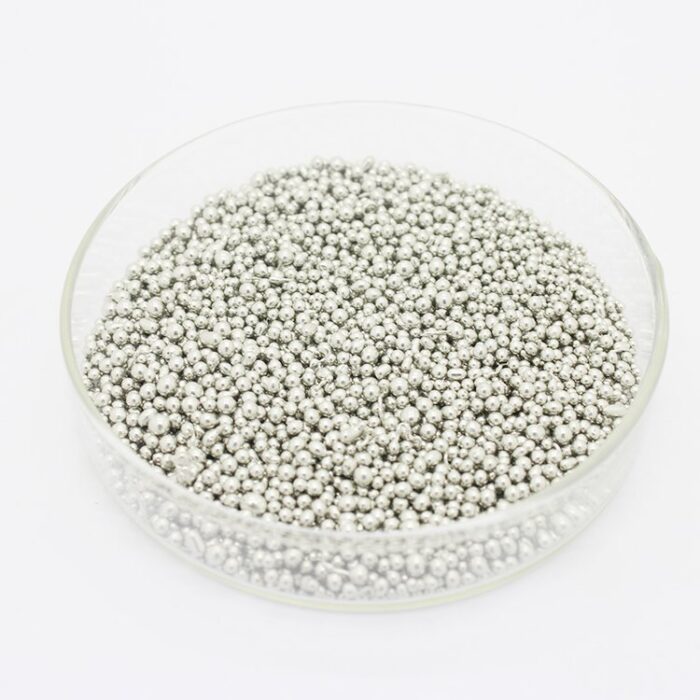

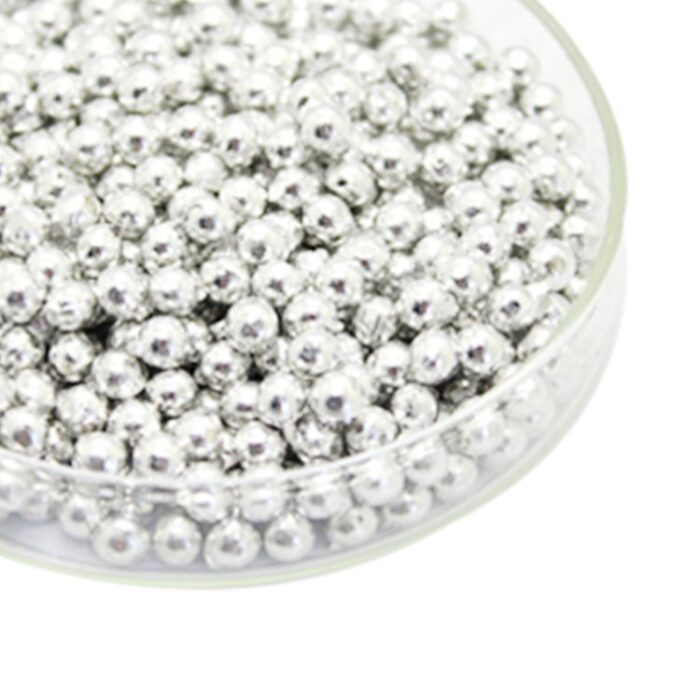

InP (Indium Phosphide) Pellets Granules Evaporation Materials
- Ultra-high purity (≥99.99%).
- Exceptional electronic and optical properties.
- Uniform pellet size for consistent thin-film deposition.
- Customizable sizes and specifications.
- Excellent thermal stability and chemical resistance.
Custom products or bulk orders, please contact us for competitive pricing!
- Satisfaction Guaranteed
- No Hassle Refunds
- Secure Payments
Description
Material | Indium Phosphide (InP) |
Purity | 99.9% – 99.99999% / 3N 3N5 4N 4N5 5N 5N5 6N 6N5 7N |
Shape | Pellets / Granules / Particles / Pieces |
Size | can be customized (contact us) |
Package | vacuum bag or customer’s request |
Supply Ability | 1000kg per month |
Lead Time | Qty: 1-100, Time: 3-10 days
Qty: >100, Time: to be negotiated |
Indium Phosphide (InP) Pellets are high-purity materials designed for use in advanced optoelectronics, semiconductor applications, and thin-film deposition processes. Renowned for their excellent electronic and optical properties, InP Pellets are ideal for the fabrication of high-speed electronics, photonics, and infrared devices. Their consistent composition and high purity make them indispensable in both industrial and research applications.
Key Features
- Ultra-high purity (≥99.99%).
- Exceptional electronic and optical properties.
- Uniform pellet size for consistent thin-film deposition.
- Customizable sizes and specifications.
- Excellent thermal stability and chemical resistance.
Technical Specifications
① Chemical Composition
- Indium Phosphide (InP) Content: ≥99.9%.
- Trace Impurities: Detailed analysis available upon request.
② Physical Properties
- Appearance: Black to dark gray metallic pellets.
- Density: ~4.81 g/cm³.
- Melting Point: ~1070°C.
③ Pellet Size
- Standard Sizes: 1-3 mm, 3-5 mm.
- Custom sizes available for specific deposition requirements.
Applications
- Semiconductor Devices: Used in the fabrication of high-performance transistors, diodes, and integrated circuits.
- Optoelectronics: Essential for producing laser diodes, light-emitting diodes (LEDs), and photodetectors.
- Infrared Optics: Ideal for manufacturing components used in infrared imaging and spectroscopy.
- Thin-Film Deposition: Utilized in PVD (Physical Vapor Deposition) and CVD (Chemical Vapor Deposition) for creating precise thin-film coatings in electronics and photonics.
- Telecommunication: Widely used in the production of optical fibers and components for high-speed communication networks.
Product Advantages
- High Purity: Ensures reliable performance in critical semiconductor and optoelectronic applications.
- Superior Properties: Excellent thermal and electronic characteristics for demanding environments.
- Consistency: Uniform pellet size ensures efficient deposition.
- Customizable Options: Tailored sizes and specifications for specific industrial or research needs.
Packaging and Storage
① Packaging
- Packed in moisture-proof aluminum foil bags or sealed containers.
- Custom packaging available based on client requirements.
② Storage
- Store in a dry, cool environment to prevent oxidation and contamination.
- Ensure proper sealing to maintain quality over time.
Quality Certifications
- ISO 9001 Certified Quality Management System.
- RoHS Compliance.
- Certificate of Analysis (COA) and Material Safety Data Sheet (MSDS) provided upon request.
Frequently Asked Questions (FAQs)
- Q: Can InP Pellets be customized in size?
A: Yes, we offer a range of sizes to meet specific deposition requirements. - Q: What are the common uses of InP Pellets?
A: They are primarily used in semiconductors, optoelectronics, and infrared applications.
For further information or to request a quote, please contact us. Our team of experts is available to provide tailored solutions for your application needs.
