Pb Lead Sputtering Target

  • Thickness: The thickness of the lead coating can be precisely controlled during the sputtering process, allowing for tailored solutions to meet specific application needs.
  • Alloys: Lead sputtering targets can be produced as pure lead or in alloyed forms, such as lead-tin (Pb-Sn) or lead-silver (Pb-Ag), depending on the desired properties of the thin film.
  • Backing Plates: Lead targets can be bonded to backing plates made from materials like copper or aluminum to improve thermal conductivity and mechanical stability during the sputtering process.

Custom products or bulk orders, please contact us for competitive pricing!

  • Done Satisfaction Guaranteed
  • Done No Hassle Refunds
  • Done Secure Payments
GUARANTEED SAFE CHECKOUT
  • Visa Card
  • MasterCard
  • American Express
  • Discover Card
  • PayPal

Description

Material Lead (Pb)
Purity 99.9% – 99.9999% / 3N 3N5 4N 4N5 5N 5N5 6N

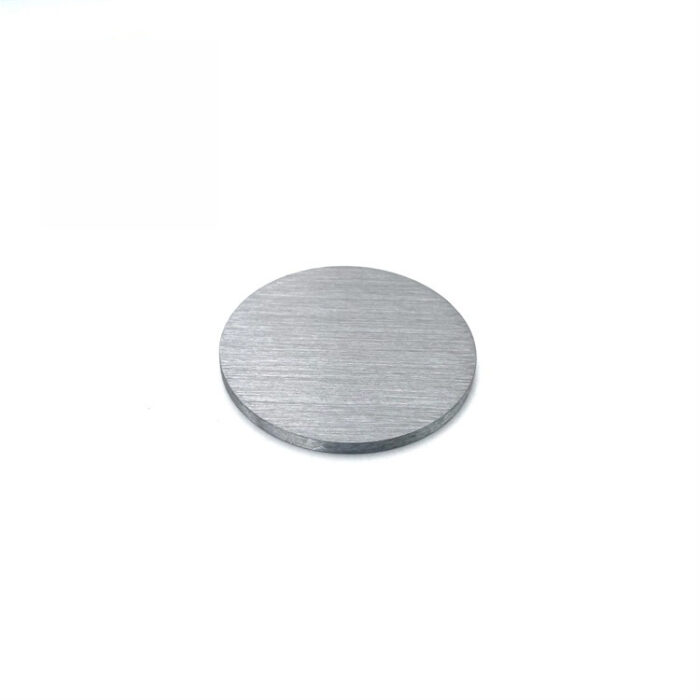

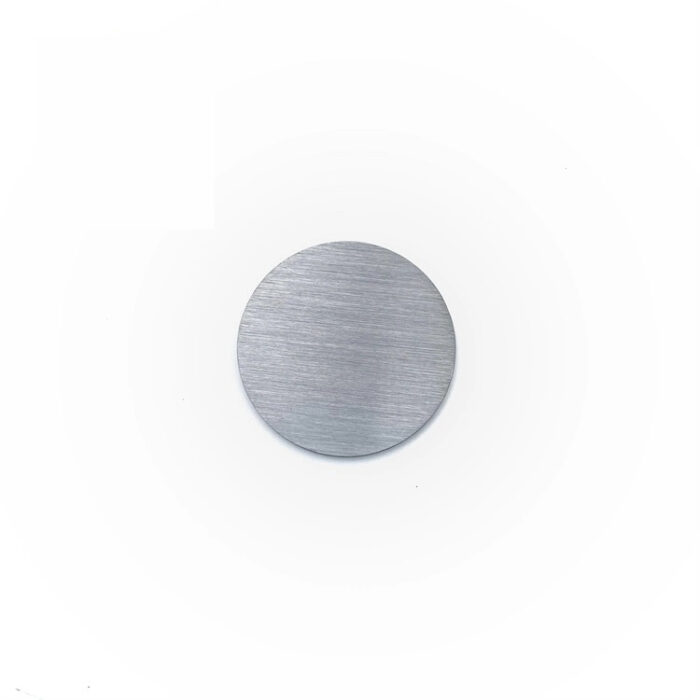

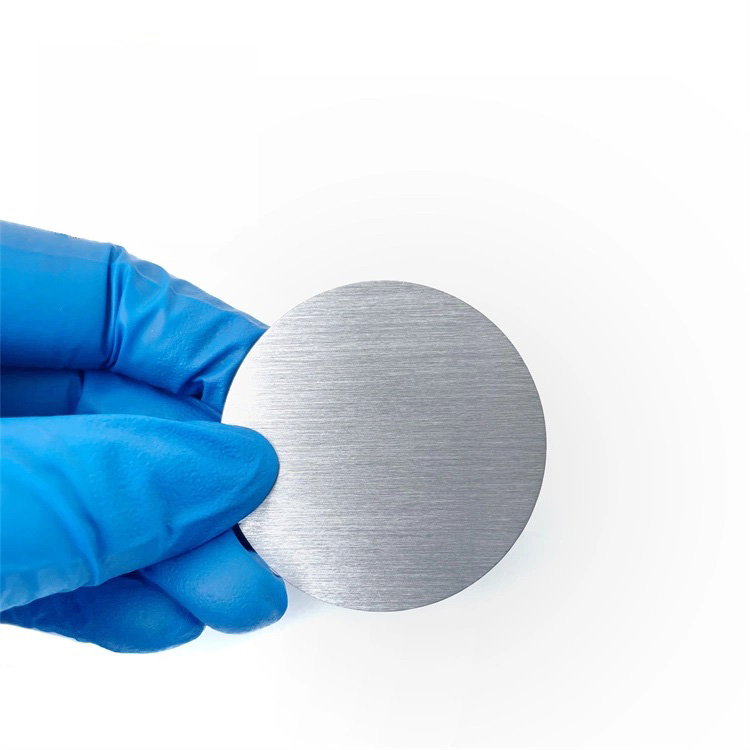

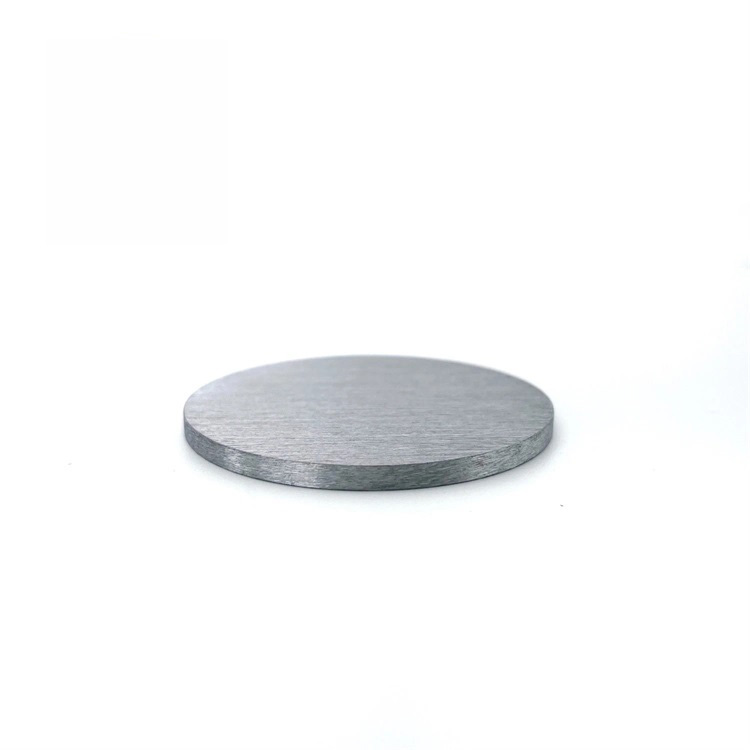

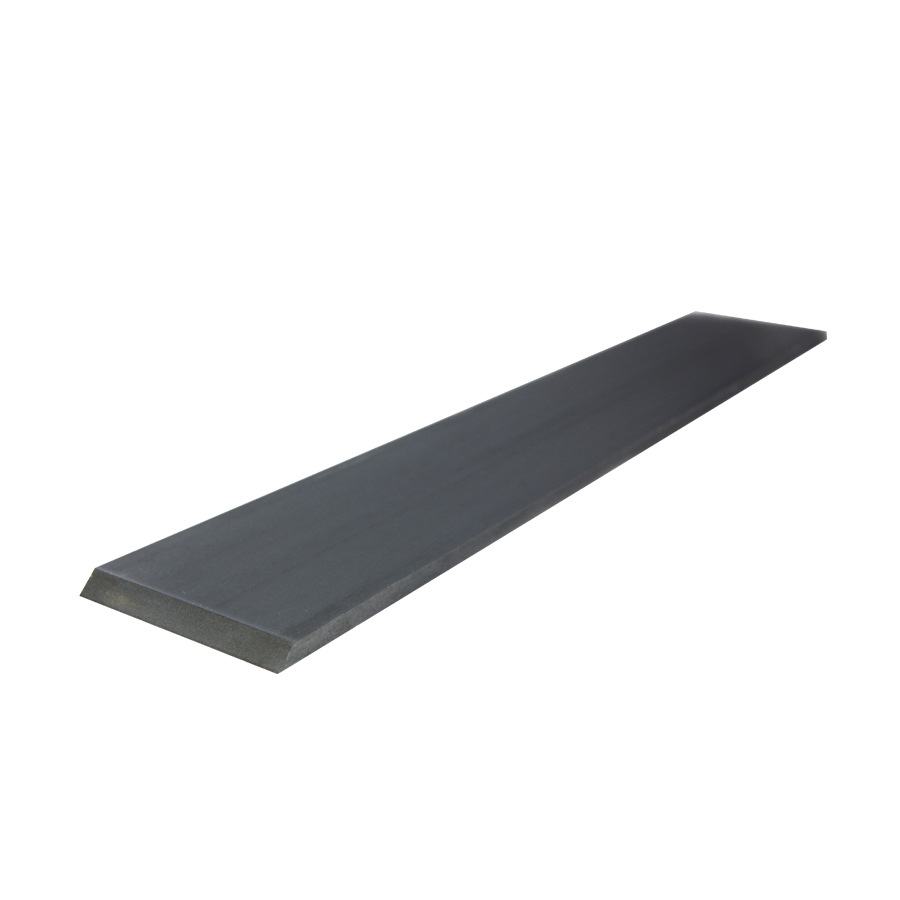

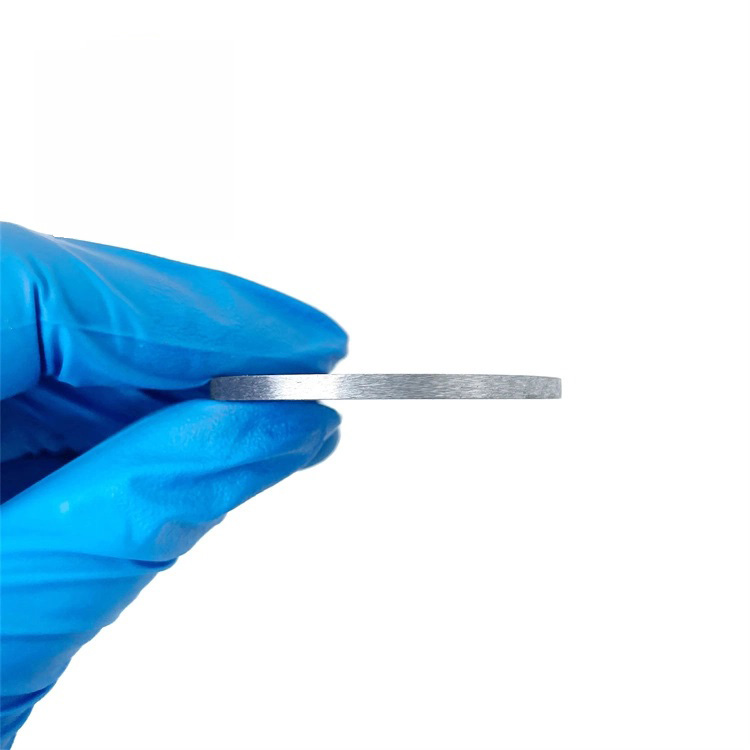

Shape disc, plate, sheet, rod, customized
Size can be customized (contact us)
Package vacuum bag or customer’s request
Place of Origin China
MOQ 1pcs
Supply Ability 1000pcs per month
Lead Time Qty: 1-100, Time: 3-10 days

Qty: >100, Time: to be negotiated



Key Features:

  • Purity: Lead sputtering targets are typically available in high purity levels, such as 99.99% (4N) or higher, ensuring the deposition of high-quality and uniform films.
  • Shapes and Sizes: These targets are available in various forms, including discs, plates, and custom shapes, tailored to fit different sputtering systems and specific application requirements.

Applications:

  • Semiconductor Industry: In certain specialized semiconductor applications, lead is used in the creation of thin films that can serve as protective layers, electrodes, or in the fabrication of specific electronic components where lead’s unique properties are required.
  • Superconductors: Lead is sometimes used in the development of superconducting materials, particularly in the creation of thin films for research and applications in low-temperature superconductivity.
  • Radiation Shielding: Lead’s high density and ability to absorb radiation make it an ideal material for thin films used in radiation shielding applications. This includes coatings for medical imaging devices, X-ray equipment, and protective barriers.
  • Battery Technology: While more common in bulk form, lead thin films may also play a role in research and development related to lead-acid batteries or other energy storage systems.

Customization Options:

  • Thickness: The thickness of the lead coating can be precisely controlled during the sputtering process, allowing for tailored solutions to meet specific application needs.
  • Alloys: Lead sputtering targets can be produced as pure lead or in alloyed forms, such as lead-tin (Pb-Sn) or lead-silver (Pb-Ag), depending on the desired properties of the thin film.
  • Backing Plates: Lead targets can be bonded to backing plates made from materials like copper or aluminum to improve thermal conductivity and mechanical stability during the sputtering process.

Lead (Pb) sputtering targets are used in physical vapor deposition (PVD) processes to deposit thin lead films onto various substrates. Lead is a heavy metal known for its high density, malleability, and corrosion resistance, making it suitable for specific niche applications, particularly in the electronics, shielding, and superconductivity sectors.

If you have specific requirements, such as dimensions, purity, or application details, please contact us to match your needs.
