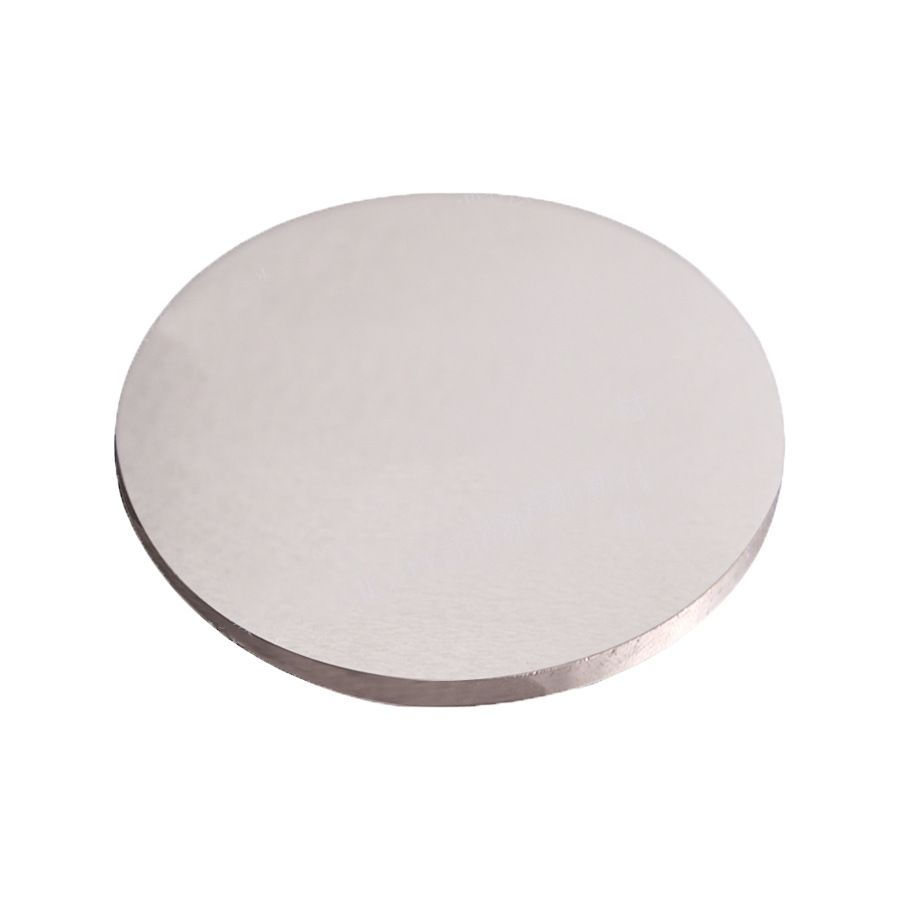

Sb2S3 (Antimony Trisulfide) Sputtering Target
- High Optical Absorption: Sb₂S₃ is known for its strong absorption in the visible and near-infrared regions, making it ideal for photovoltaic and optoelectronic applications.
- Environmentally Friendly: Sb₂S₃ is composed of elements that are abundant and less toxic compared to other heavy metals used in similar applications.
- Tunability: The bandgap of Sb₂S₃ can be tuned by modifying deposition parameters, allowing for control over its optical and electronic properties in thin films.
- Thermoelectric Properties: Sb₂S₃ is being explored for its potential to generate electrical energy from thermal gradients, offering promise in energy-harvesting devices.
Custom products or bulk orders, please contact us for competitive pricing!
- Satisfaction Guaranteed
- No Hassle Refunds
- Secure Payments
Description
Material | Sb2S3 |
Purity | 99.9% – 99.9999% / 3N 3N5 4N 4N5 5N 5N5 6N |
Shape | disc, plate, sheet, rod, customized |
Size | can be customized (contact us) |
Package | vacuum bag or customer’s request |
Place of Origin | China |
MOQ | 1pcs |
Supply Ability | 10000pcs per month |
Lead Time | Qty: 1-100, Time: 3-10 days
Qty: >100, Time: to be negotiated |
Antimony trisulfide (Sb₂S₃) sputtering targets are widely used in thin-film deposition processes for applications in optoelectronics, photovoltaics, thermoelectrics, and more. Sb₂S₃ exhibits favorable optical and electrical properties, making it suitable for use in a variety of high-performance thin-film devices.
Key Applications:
- Photovoltaics: Sb₂S₃ is used in thin-film solar cells due to its excellent optical absorption properties and high potential as a light-harvesting material. It is an attractive candidate for use in next-generation solar cells that require environmentally friendly and cost-effective materials.
- Optoelectronic Devices: Sb₂S₃ thin films are employed in optoelectronic applications such as photodetectors and sensors due to their unique optical properties, including high absorption and tunable bandgaps. These characteristics make Sb₂S₃ suitable for visible and infrared detection.
- Thermoelectric Materials: Sb₂S₃’s thermoelectric properties make it an appealing material for energy-harvesting devices that convert heat into electrical energy. Thin films of Sb₂S₃ are being researched for their potential in thermoelectric applications where efficiency and low thermal conductivity are crucial.
- Memory Devices: Sb₂S₃ has been investigated for use in memory storage devices like phase-change memory (PCM), where thin films of antimony trisulfide are utilized for their ability to switch between amorphous and crystalline states.
- Photocatalysis: Sb₂S₃ has shown promise as a photocatalyst in water-splitting applications and environmental remediation, thanks to its optical absorption and charge separation properties under illumination.
Features of Sb₂S₃ Sputtering Targets:
- High Optical Absorption: Sb₂S₃ is known for its strong absorption in the visible and near-infrared regions, making it ideal for photovoltaic and optoelectronic applications.
- Environmentally Friendly: Sb₂S₃ is composed of elements that are abundant and less toxic compared to other heavy metals used in similar applications.
- Tunability: The bandgap of Sb₂S₃ can be tuned by modifying deposition parameters, allowing for control over its optical and electronic properties in thin films.
- Thermoelectric Properties: Sb₂S₃ is being explored for its potential to generate electrical energy from thermal gradients, offering promise in energy-harvesting devices.
Customization Options:
- Target Sizes: Sb₂S₃ sputtering targets are available in different sizes and shapes, including planar and rotary targets, to fit various deposition systems.
- Purity Levels: High-purity Sb₂S₃ targets (up to 99.99%) can be supplied to ensure quality film deposition for critical applications.
- Alloying/Doping: Sb₂S₃ sputtering targets can be alloyed or doped with other materials to tailor the electrical and optical properties of the resulting films.
Sb₂S₃ (Antimony Trisulfide) sputtering targets from Tinsan Materials are used in photovoltaics, optoelectronics, thermoelectrics, and memory devices. High-purity, customizable Sb₂S₃ targets for thin-film deposition in a range of applications.
If you have specific requirements, such as dimensions, purity, or application details, please contact us to match your needs.
