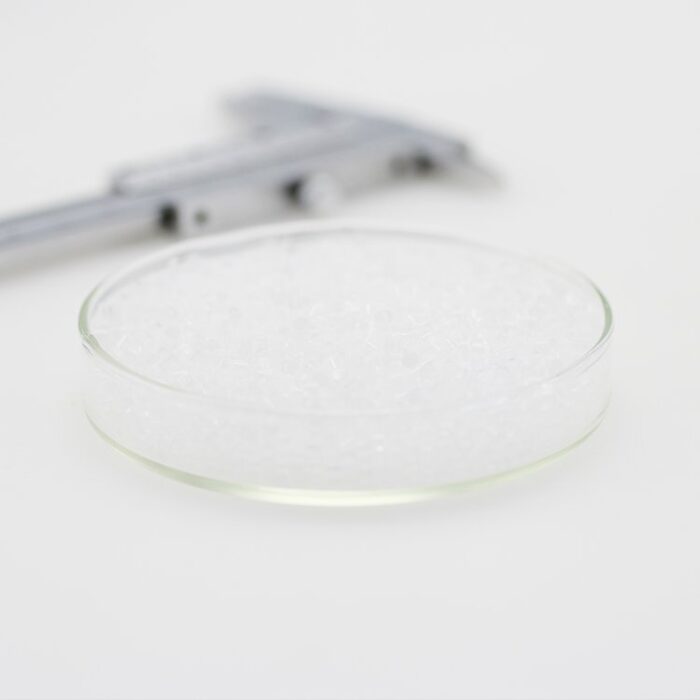

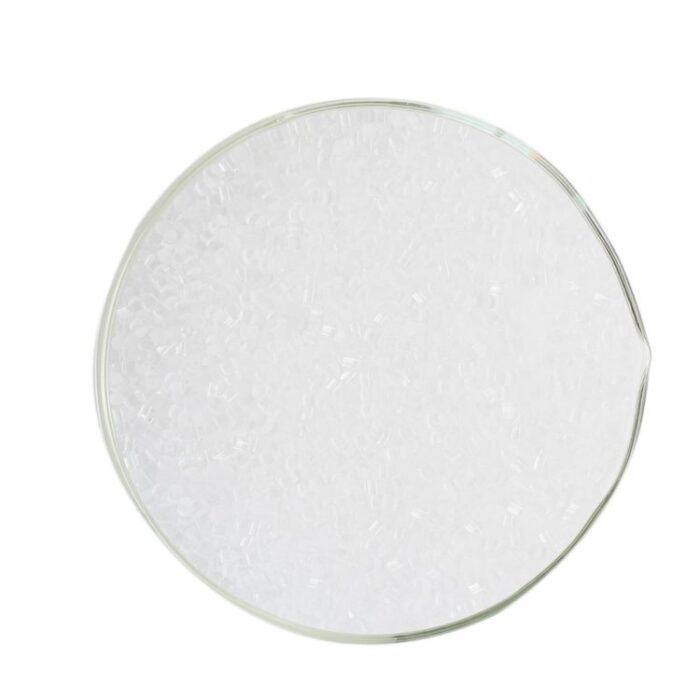

SiO2 (Silicon Dioxide) Pellets Granules Evaporation Materials

Description

Material	Silicon Dioxide (SiO2)
Purity	99.9% – 99.99999% / 3N 3N5 4N 4N5 5N 5N5 6N 6N5 7N
Shape	Pellets / Granules / Particles / Pieces
Size	can be customized (contact us)
Package	vacuum bag or customer’s request
Place of Origin	China
Supply Ability	1000kg per month
Lead Time	Qty: 1-100, Time: 3-10 days Qty: >100, Time: to be negotiated



SiO2 (Silicon Dioxide) is a widely used evaporation material in thin-film deposition processes, particularly in the production of optical coatings, dielectric layers, and semiconductor devices. It is commonly employed in thermal and electron-beam evaporation methods due to its high melting point and stable properties.

Key Applications:

• Optical Coatings: SiO2 is extensively used for anti-reflective coatings (AR), high-reflective coatings (HR), and protective layers in various optical components such as lenses, mirrors, and windows.
• Dielectric Layers: It serves as an insulator in semiconductor devices and microelectronics, providing an effective dielectric barrier in integrated circuits.
• Protective Coatings: SiO2 thin films are used as protective coatings for preventing corrosion, wear, and chemical damage on various surfaces.
• Photovoltaic Devices: Silicon dioxide is used in solar cells as a passivation layer, improving efficiency by reducing recombination of charge carriers.
• Waveguides: SiO2 is employed in optical waveguides and fiber optics due to its low optical absorption and high transparency in a wide wavelength range.

Features:

• High Transparency: SiO2 is transparent across a wide spectral range, from UV to IR, making it ideal for optical applications.
• Excellent Insulating Properties: With high dielectric strength and low electrical conductivity, SiO2 is a perfect insulator for microelectronics and semiconductor applications.
• High Melting Point: SiO2 has a melting point of approximately 1,713°C, making it suitable for high-temperature deposition processes.
• Chemical Stability: SiO2 is highly resistant to most acids, bases, and solvents, offering long-lasting protective coatings.
• Mechanical Strength: It provides excellent hardness and durability, ensuring the stability and longevity of thin films.

Specifications:

• Material: Silicon Dioxide (SiO2)
• Purity: ≥ 99.9%
• Shape: Pellets
• Size: Typically 1-6 mm in diameter, customizable sizes available
• Density: 2.65 g/cm³
• Melting Point: 1,713°C
• Optical Properties: High transmission from UV (150 nm) to IR (up to 5 μm)
• Deposition Methods: Suitable for thermal evaporation, electron-beam evaporation, and sputtering
• Refractive Index: ~1.46 (at 550 nm wavelength)
• Applications: Optical coatings, dielectric layers in electronics, passivation layers in solar cells, and protective coatings

Tinsan Materials offers SiO2 (Silicon Dioxide) evaporation pellets for thin-film deposition. High-purity SiO2 for optical coatings, dielectric layers, and protective coatings. Suitable for thermal and e-beam evaporation.

If you have specific requirements, such as dimensions, purity, or application details, please contact us to match your needs.
