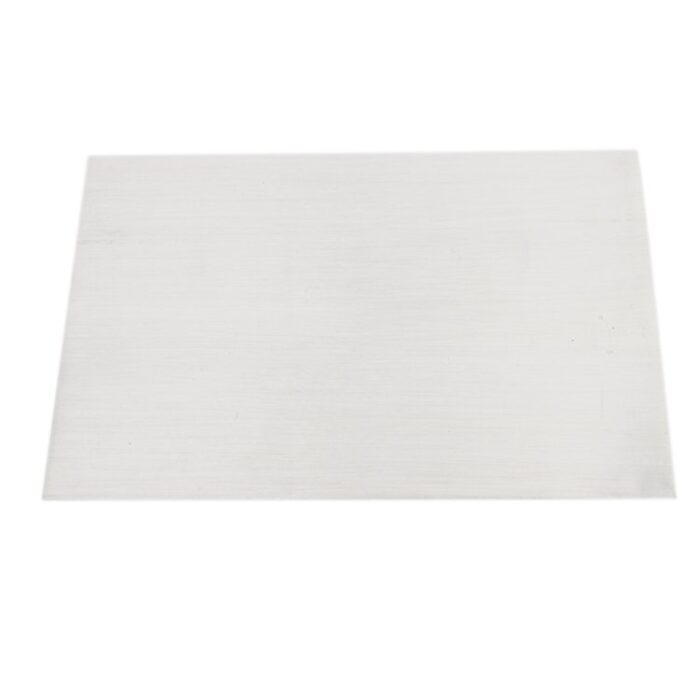

SnSe (Tin Selenide) Sputtering Targets
- High Purity: ≥ 99.99% purity for optimal thin-film deposition.
- Layered Crystal Structure: Supports efficient film formation and exfoliation.
- Exceptional Thermoelectric Performance: High Seebeck coefficient and low thermal conductivity.
- Broad Application Range: Versatile for electronic, photovoltaic, and thermoelectric uses.
- Customizable Options: Available in various sizes, shapes, and bonding configurations.
Custom products or bulk orders, please contact us for competitive pricing!
- Satisfaction Guaranteed
- No Hassle Refunds
- Secure Payments
Description
| Material | Tin Selenide (SnSe) |
| Purity | 99.9% – 99.9999% / 3N 3N5 4N 4N5 5N 5N5 6N |
| Shape | disc, plate, sheet, rod, customized |
| Size | can be customized (contact us) |
| Package | vacuum bag or customer’s request |
| Place of Origin | China |
| MOQ | 1pcs |
| Supply Ability | 10000pcs per month |
| Lead Time | Qty: 1-100, Time: 3-10 days
Qty: >100, Time: to be negotiated |
Tin Selenide (SnSe) sputtering targets are advanced materials widely used in thin-film deposition for electronic and thermoelectric applications. Renowned for their excellent thermoelectric properties and layered crystal structure, SnSe is ideal for high-performance energy conversion and optoelectronic devices.
Key Applications
- Thermoelectric Devices: Excellent for thermal-to-electric energy conversion systems.
- Photovoltaics: Utilized in absorber layers for thin-film solar cells.
- Optoelectronics: Suitable for IR detectors and other light-sensitive applications.
- Energy Harvesting: Ideal for low-energy and renewable energy solutions.
- Research and Development: Essential for studying advanced layered materials.
Features and Benefits
- High Purity: ≥ 99.99% purity for optimal thin-film deposition.
- Layered Crystal Structure: Supports efficient film formation and exfoliation.
- Exceptional Thermoelectric Performance: High Seebeck coefficient and low thermal conductivity.
- Broad Application Range: Versatile for electronic, photovoltaic, and thermoelectric uses.
- Customizable Options: Available in various sizes, shapes, and bonding configurations.
Specifications
- Purity: ≥ 99.9%
- Density: Optimized for uniform sputtering performance.
- Dimensions: Standard and custom sizes to meet specific requirements.
- Crystal Structure: Orthorhombic phase ensuring reliable material properties.
- Surface Finish: Precision-polished for improved sputtering efficiency.
Customization Options
- Size and Shape: Tailored to fit diverse deposition systems.
- Bonding Services: Backing plate options available for enhanced thermal management.
- Special Compositions: Custom doping or alloying available upon request.
- Purity Adjustments: Tailored purity levels to suit unique application demands.
Explore the potential of Tin Selenide (SnSe) sputtering targets for your thin-film deposition needs. Contact us for high-quality materials, expert solutions, and custom configurations.
