SnSe2 (Tin Diselenide) Sputtering Targets

  • High Purity: ≥ 99.99% purity ensures consistent and efficient thin-film deposition.
  • Layered Structure: Promotes easy exfoliation and high-quality thin-film production.
  • Exceptional Optical and Electrical Properties: High carrier mobility and excellent absorption coefficients.
  • Thermoelectric Efficiency: Strong performance in thermal-to-electric energy conversion.
  • Customizable Options: Tailored sizes and shapes to suit diverse applications.

Custom products or bulk orders, please contact us for competitive pricing!

  • Done Satisfaction Guaranteed
  • Done No Hassle Refunds
  • Done Secure Payments
GUARANTEED SAFE CHECKOUT
  • Visa Card
  • MasterCard
  • American Express
  • Discover Card
  • PayPal

Description

Material Tin Diselenide (SnSe₂)
Purity 99.9% – 99.9999% / 3N 3N5 4N 4N5 5N 5N5 6N

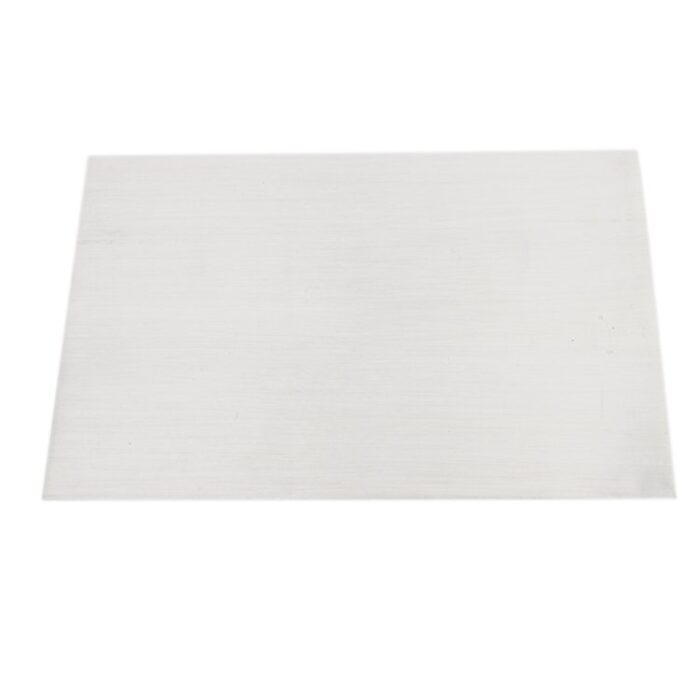

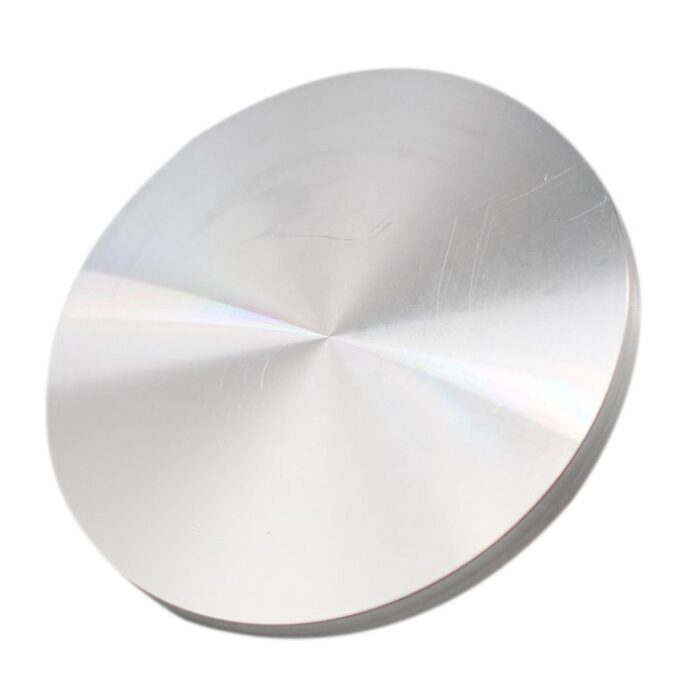

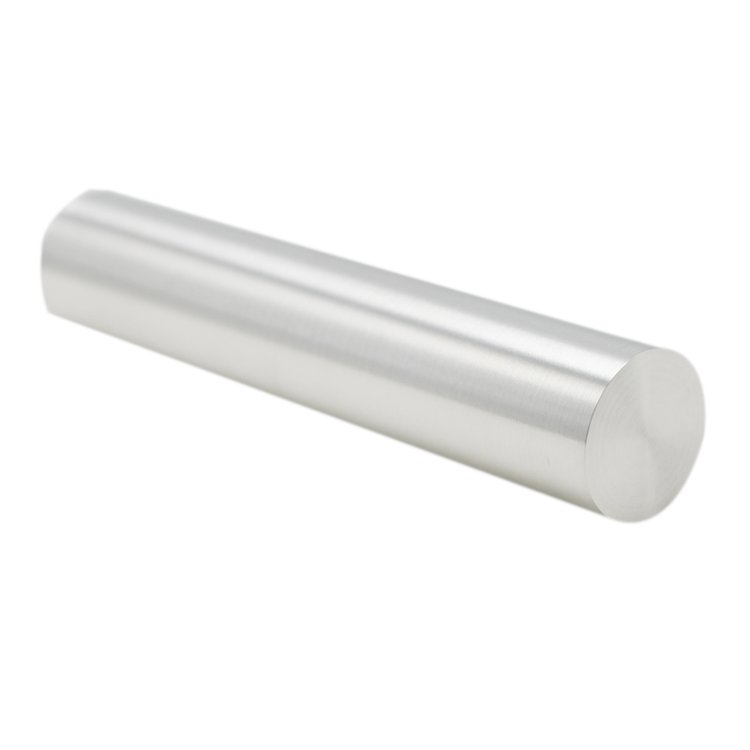

Shape disc, plate, sheet, rod, customized
Size can be customized (contact us)
Package vacuum bag or customer’s request
Place of Origin China
MOQ 1pcs
Supply Ability 10000pcs per month
Lead Time Qty: 1-100, Time: 3-10 days

Qty: >100, Time: to be negotiated



Tin Diselenide (SnSe₂) sputtering targets are premium materials designed for thin-film deposition in advanced electronic and optoelectronic applications. Known for their layered crystal structure and exceptional electronic properties, SnSe₂ is widely utilized in photovoltaics, photodetectors, and thermoelectric devices.

Key Applications

  • Photovoltaics: Suitable for absorber layers in thin-film solar cells.
  • Optoelectronics: Used in photodetectors, LEDs, and other light-sensitive devices.
  • Thermoelectric Devices: Ideal for energy harvesting and thermal management systems.
  • Two-Dimensional Materials Research: Essential for creating layered semiconducting thin films.
  • Flexible Electronics: Enables lightweight, bendable electronic devices.

Features and Benefits

  • High Purity: ≥ 99.99% purity ensures consistent and efficient thin-film deposition.
  • Layered Structure: Promotes easy exfoliation and high-quality thin-film production.
  • Exceptional Optical and Electrical Properties: High carrier mobility and excellent absorption coefficients.
  • Thermoelectric Efficiency: Strong performance in thermal-to-electric energy conversion.
  • Customizable Options: Tailored sizes and shapes to suit diverse applications.

Specifications

  • Purity: ≥ 99.9%
  • Density: Optimized for uniform film formation.
  • Dimensions: Standard and custom sizes available upon request.
  • Crystal Structure: Hexagonal phase for optimal material performance.
  • Surface Finish: Precision-polished for improved sputtering efficiency.

Customization Options

  • Size and Shape: Customizable to fit various deposition systems.
  • Bonding Services: Available with backing plates for enhanced thermal stability.
  • Tailored Compositions: Options for doping or alloying to achieve specific properties.
  • Specialized Purity Levels: Adjustable to meet unique research and industrial demands.

For high-quality Tin Diselenide (SnSe₂) sputtering targets and expert solutions tailored to your thin-film deposition needs, contact us today. Our team is dedicated to delivering top-tier products and exceptional service.
