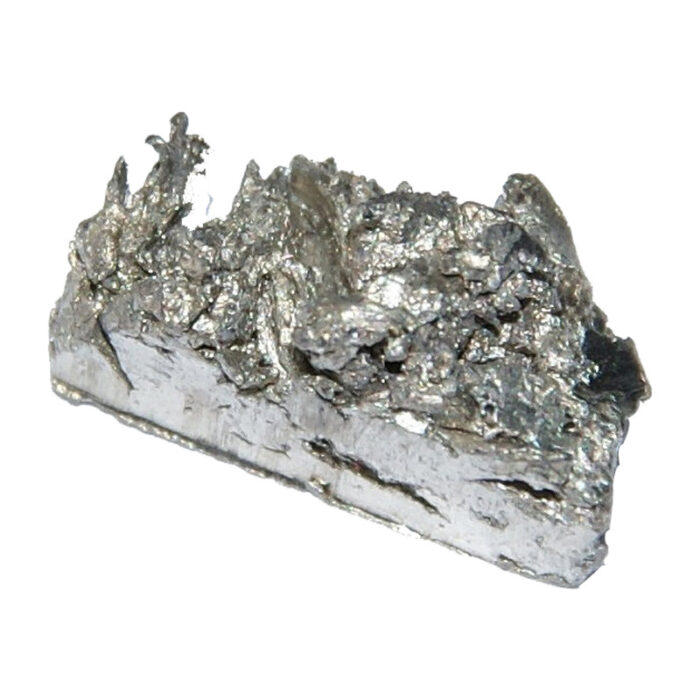

Yb Ytterbium Pellets 5N (99.999%) Granules Evaporation Materials
- High Purity: Ytterbium pellets are typically offered in purities of 99.9% or higher, ensuring the production of high-quality, defect-free thin films.
- Thermal and Electrical Conductivity: Ytterbium is known for its high thermal and electrical conductivity, contributing to the efficiency of devices that incorporate it.
- High Deposition Rate: Ytterbium evaporates at a relatively low temperature compared to other rare-earth metals, enabling a smooth deposition process.
- Optical Clarity: Films produced from ytterbium can enhance the optical properties of devices by improving transparency and reducing scattering.
Custom products or bulk orders, please contact us for competitive pricing!
- Satisfaction Guaranteed
- No Hassle Refunds
- Secure Payments
Description
Material | Ytterbium |
Purity | 99.9% – 99.999% / 3N 3N5 4N 4N5 5N |
Shape | Pellets / Granules / Particles / Pieces |
Size | can be customized (contact us) |
Package | vacuum bag or customer’s request |
Lead Time | Qty: 1-100, Time: 3-10 days
Qty: >100, Time: to be negotiated |
Ytterbium (Yb) pellets are high-purity evaporation materials commonly used in vacuum deposition processes, such as thermal and electron beam (e-beam) evaporation. Ytterbium, a rare-earth metal, is valued for its excellent optical and electronic properties, making it ideal for thin-film deposition in various high-tech applications, particularly in electronics and photonics.
Key Applications:
- Optoelectronic Devices: Ytterbium is used in the fabrication of optoelectronic components, including lasers, amplifiers, and fiber optics.
- Laser Systems: Ytterbium-doped lasers, including Yb lasers, are widely used in material processing, medical devices, and scientific applications due to their high efficiency and output power.
- Thin-Film Coatings: Ytterbium is applied as a thin-film material in electronics, improving the performance of semiconductors, sensors, and displays.
- Solar Cells: Ytterbium thin films are also used in advanced photovoltaic devices to enhance energy conversion efficiency.
- Thermoelectric Materials: Ytterbium is an important component in certain thermoelectric materials used for power generation and refrigeration.
Features:
- High Purity: Ytterbium pellets are typically offered in purities of 99.9% or higher, ensuring the production of high-quality, defect-free thin films.
- Thermal and Electrical Conductivity: Ytterbium is known for its high thermal and electrical conductivity, contributing to the efficiency of devices that incorporate it.
- High Deposition Rate: Ytterbium evaporates at a relatively low temperature compared to other rare-earth metals, enabling a smooth deposition process.
- Optical Clarity: Films produced from ytterbium can enhance the optical properties of devices by improving transparency and reducing scattering.
Specifications:
- Material: Ytterbium (Yb)
- Purity: ≥ 99.9%
- Form: Pellets
- Size: Typically 1-6 mm in diameter (custom sizes available)
- Melting Point: ~824°C
- Density: ~6.97 g/cm³
- Deposition Methods: Suitable for thermal and electron beam evaporation
- Applications: Optoelectronics, lasers, fiber optics, thin-film coatings, solar cells, and thermoelectric materials.
Tinsan Materials offers high-purity Ytterbium (Yb) pellets for thermal and electron beam evaporation. Ideal for optoelectronics, lasers, fiber optics, solar cells, and thermoelectric materials. Available in custom sizes with ≥ 99.9% purity for superior thin-film deposition.
If you have specific requirements, such as dimensions, purity, or application details, please contact us to match your needs.
